Components [09/2014 - ]

Fig 1: Front Door Lock Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Driver Side	*B	for Front Passenger Side
*1	COURTESY LIGHT ASSEMBLY	*2	DOOR TRIM COVER
*3	FRONT DOOR INSIDE HANDLE BEZEL PLUG	*4	FRONT DOOR NO. 1 STIFFENER CUSHION
*5	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	*6	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
*7	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

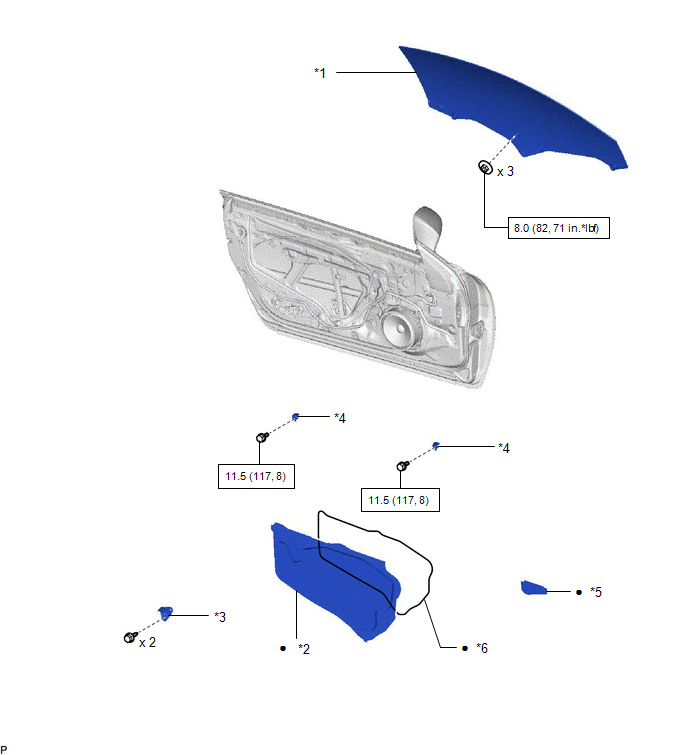

Fig 2: Front Door Lock Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR GLASS SUB-ASSEMBLY	*2	FRONT DOOR SERVICE HOLE COVER
*3	FRONT DOOR TRIM BRACKET	*4	FRONT DOOR UPPER WINDOW STOP
*5	OUTER MIRROR INSTALL HOLE COVER	*6	BUTYL TAPE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

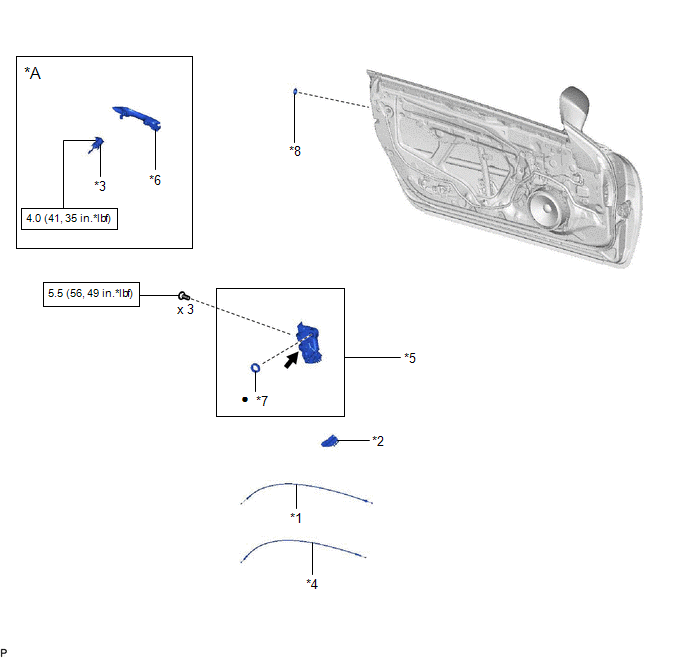

Fig 3: Front Door Lock Replacement Components With Torque Specifications (3 Of 3)

*1	FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY	*2	FRONT DOOR LOCK COVER SUB-ASSEMBLY
*3	FRONT DOOR LOCK CYLINDER ASSEMBLY	*4	FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY
*5	FRONT DOOR LOCK WITH MOTOR ASSEMBLY	*6	FRONT DOOR OUTSIDE HANDLE ASSEMBLY
*7	DOOR LOCK WIRE HARNESS SEAL	*8	HOLE PLUG
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-
