Components [09/2014 - ]

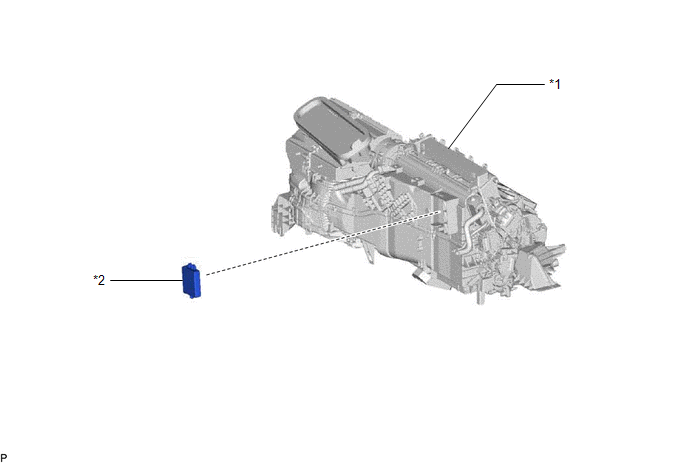

Fig 1: ID Code Box Replacement Components

GTY457294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

AIR CONDITIONING UNIT ASSEMBLY

*2

ID CODE BOX (IMMOBILISER CODE ECU)
