Components [09/2014 - ]

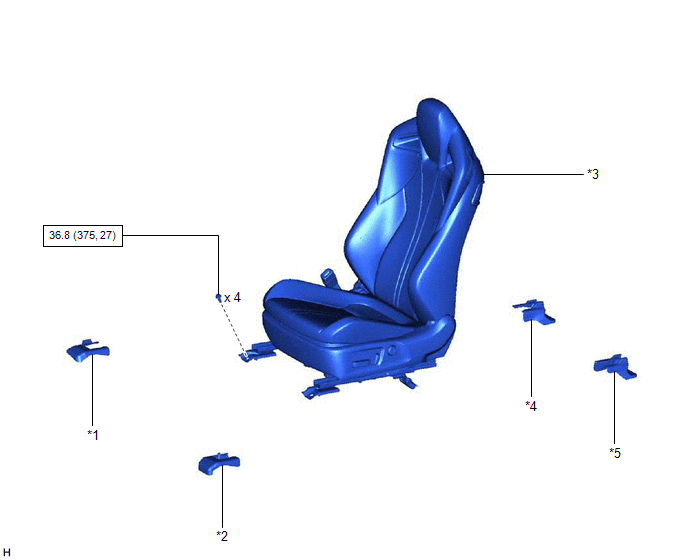

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT INNER SEAT TRACK BRACKET COVER	*2	FRONT OUTER SEAT TRACK BRACKET COVER
*3	FRONT SEAT ASSEMBLY	*4	INNER SEAT TRACK BRACKET COVER
*5	REAR OUTER FRONT SEAT TRACK COVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

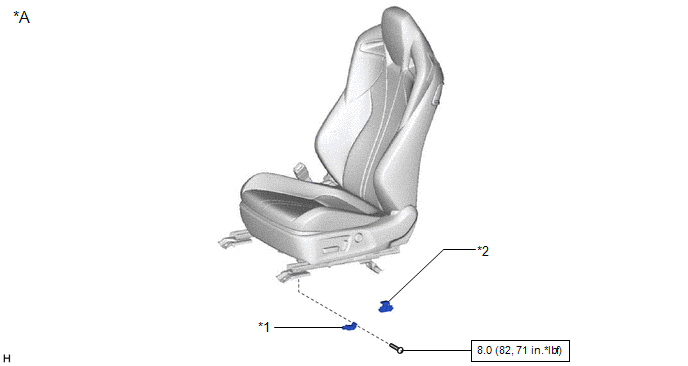

Fig 2: Front Seat Assembly Replacement Components With Torque Specifications (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Driver Side	-	-
*1	SEAT POSITION AIRBAG SENSOR	*2	SEAT SLIDE POSITION SENSOR PROTECTOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

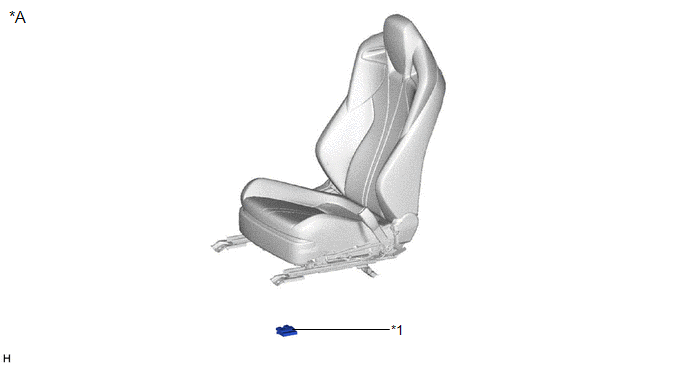

Fig 3: Front Seat Assembly Replacement Components (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Front Passenger Side	-	-
*1	OCCUPANT DETECTION ECU	-	-

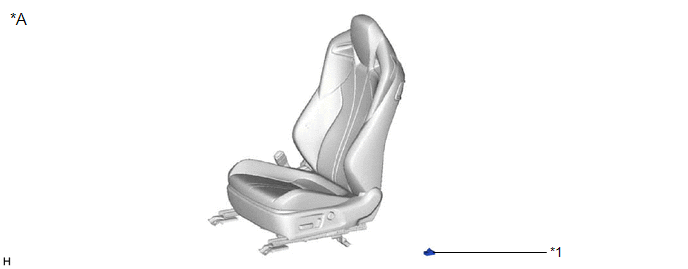

Fig 4: Front Seat Assembly Replacement Components (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Seat Heater System	-	-
*1	SEAT HEATER CONTROL SUB-ASSEMBLY	-	-

Fig 5: Front Seat Assembly Replacement Components (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SEAT CUSHION SHIELD	*2	FRONT SEAT INNER CUSHION SHIELD
*3	INNER NO. 1 FRONT SEAT CUSHION SHIELD	-	-

Fig 6: Front Seat Assembly Replacement Components (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT SEAT INNER BELT ASSEMBLY LH	*2	FRONT SEAT INNER BELT ASSEMBLY RH
*3	FRONT SEAT BELT ANCHOR PLATE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

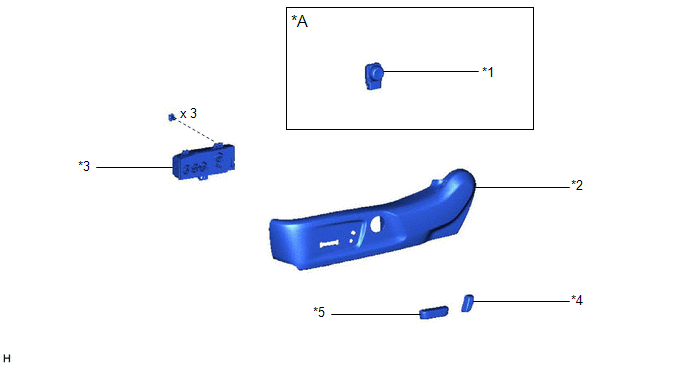

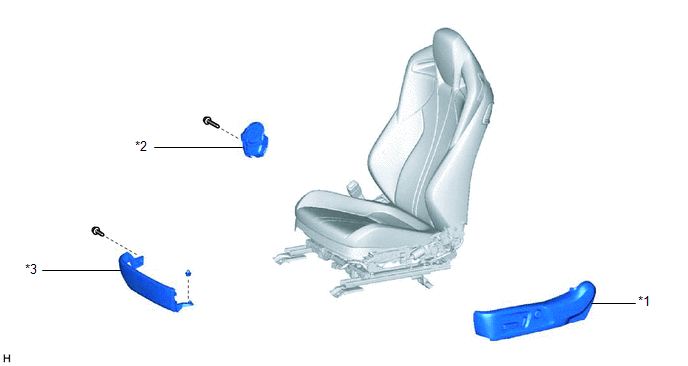

Fig 7: Front Seat Assembly Replacement Components (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Driver Side	-	-
*1	FRONT LUMBAR POWER SEAT SWITCH	*2	FRONT SEAT CUSHION SHIELD
*3	POSITION CONTROL ECU AND SWITCH ASSEMBLY	*4	RECLINING POWER SEAT SWITCH KNOB
*5	SLIDE AND VERTICAL POWER SEAT SWITCH KNOB	-	-

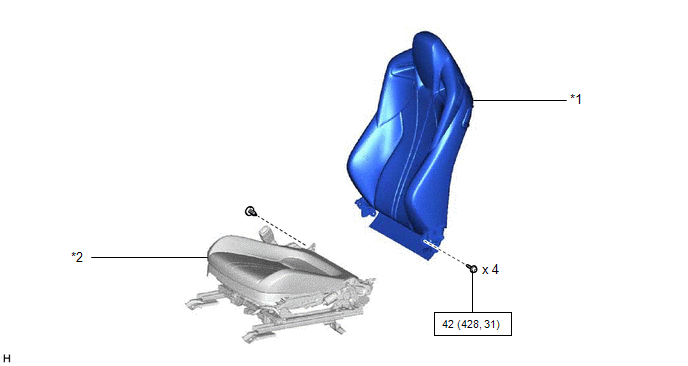

Fig 8: Front Seat Assembly Replacement Components With Torque Specifications (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

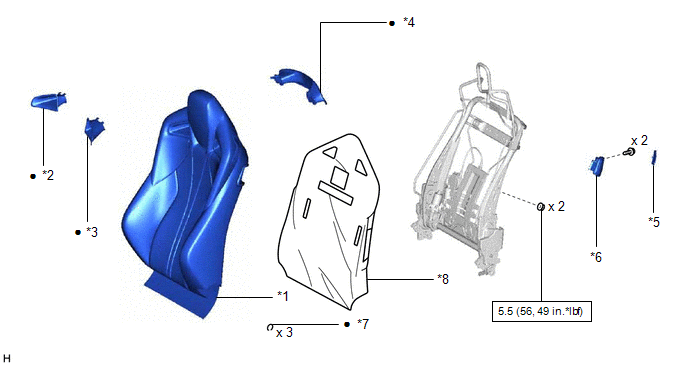

Fig 9: Front Seat Assembly Replacement Components With Torque Specifications (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SEATBACK PAD WITH COVER	*2	NO. 1 FRONT SEAT SHOULDER BELT GUIDE
*3	NO. 2 FRONT SEAT SHOULDER BELT GUIDE	*4	NO. 3 FRONT SEAT SHOULDER BELT GUIDE
*5	RECLINING REMOTE CONTROL CAP	*6	RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY
*7	HOG RING	*8	FRONT SEATBACK EDGE PROTECTOR
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

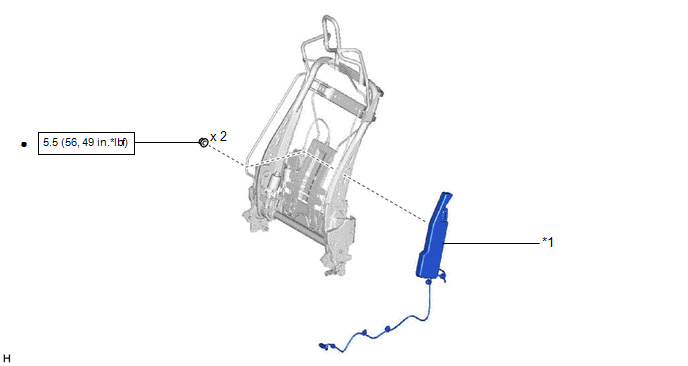

Fig 10: Front Seat Assembly Replacement Components With Torque Specifications (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SEAT AIRBAG ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

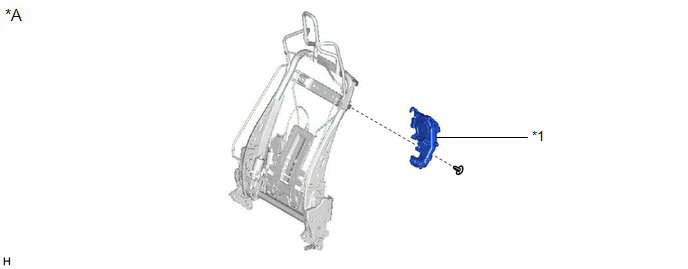

Fig 11: Front Seat Assembly Replacement Components (11 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Climate Control Seat System	-	-
*1	SEATBACK CLIMATE CONTROL BLOWER	-	-

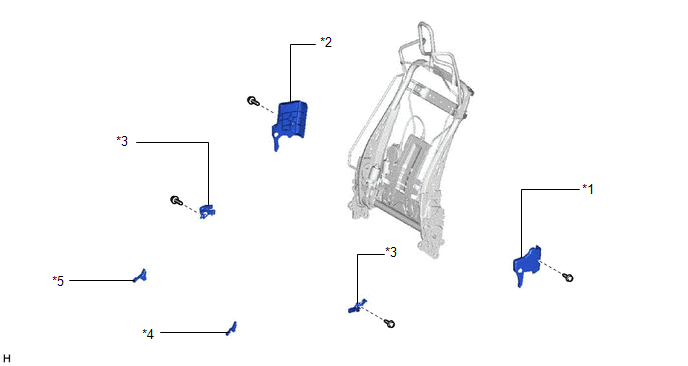

Fig 12: Front Seat Assembly Replacement Components (12 Of 16)

*1	LH SEAT RECLINING ADJUSTER INSIDE COVER LH	*2	LH SEAT RECLINING ADJUSTER INSIDE COVER RH
*3	LIMIT SWITCH ASSEMBLY	*4	RECLINING ADJUSTER INSIDE COVER LH
*5	RECLINING ADJUSTER INSIDE COVER RH	-	-

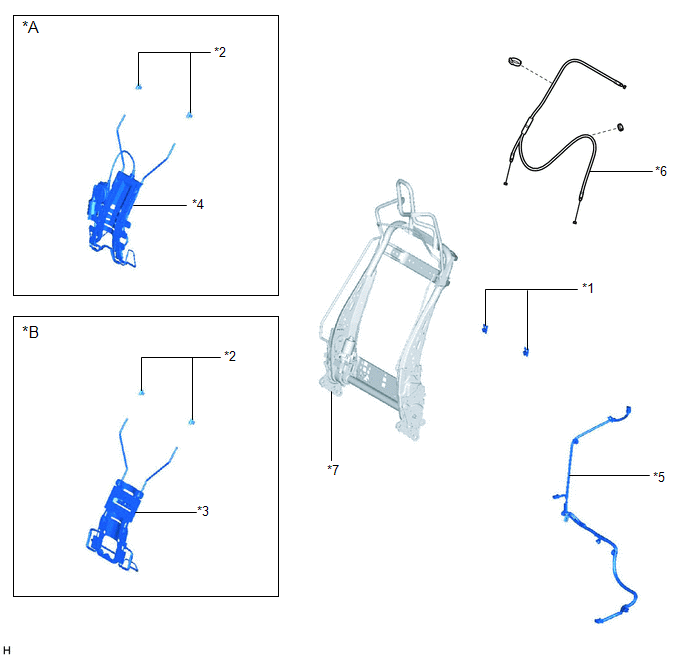

Fig 13: Front Seat Assembly Replacement Components (13 Of 16)

*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT SEATBACK EDGE PROTECTOR	*2	FRONT SEATBACK HOOK
*3	FRONT SEATBACK SPRING SUB-ASSEMBLY	*4	LUMBAR SUPPORT ADJUSTER ASSEMBLY
*5	NO. 2 FRONT SEAT WIRE	*6	RECLINING ADJUSTER EQUALIZING CABLE ASSEMBLY
*7	FRONT SEATBACK FRAME SUB-ASSEMBLY	-	-

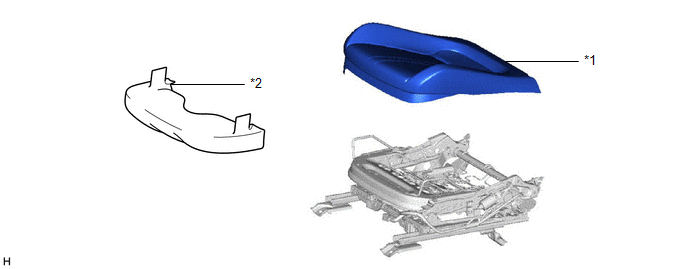

Fig 14: Front Seat Assembly Replacement Components (14 Of 16)

FRONT SEAT CUSHION PAD WITH COVER

FRONT SEAT CUSHION EDGE PROTECTOR

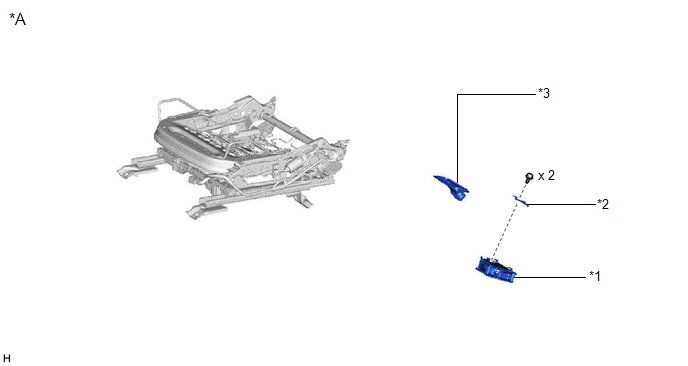

Fig 15: Front Seat Assembly Replacement Components (15 Of 16)

*A	w/ Climate Control Seat System	-	-
*1	SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY	*2	SEAT CUSHION CLIMATE CONTROL BRACKET
*3	SEAT CUSHION CLIMATE CONTROL DUCT	-	-

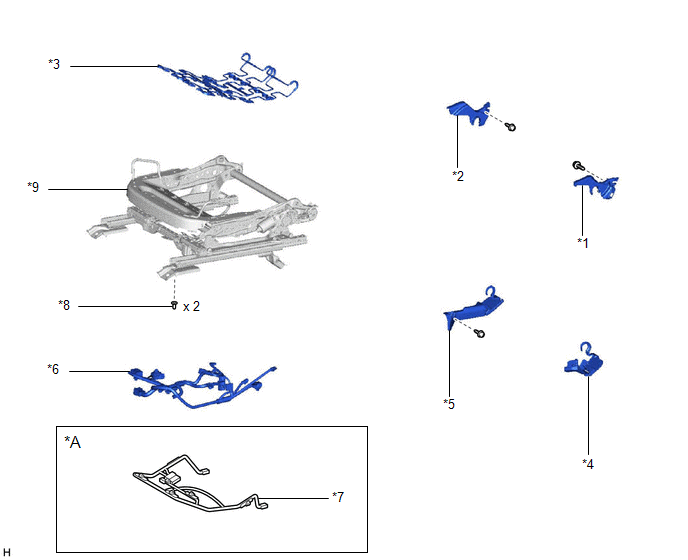

Fig 16: Front Seat Assembly Replacement Components (16 Of 16)

*A	for Front Passenger Side	-	-
*1	FRONT SEAT CUSHION EDGE PROTECTOR LH	*2	FRONT SEAT CUSHION EDGE PROTECTOR RH
*3	FRONT SEAT CUSHION SPRING SUB-ASSEMBLY	*4	FRONT SEAT LOWER CUSHION SHIELD LH
*5	FRONT SEAT LOWER CUSHION SHIELD RH	*6	FRONT SEAT WIRE
*7	FRONT SEAT WIRE RH	*8	SEAT ADJUSTER COVER CAP
*9	FRONT SEAT ADJUSTER ASSEMBLY	-	-
