Installation [09/2014 - ]: Procedure

1. Place the front seat assembly in the cabin.
   NOTE:

   Be careful not to damage the vehicle body.

2. Connect the connector to the front seat airbag assembly under the front seat assembly.

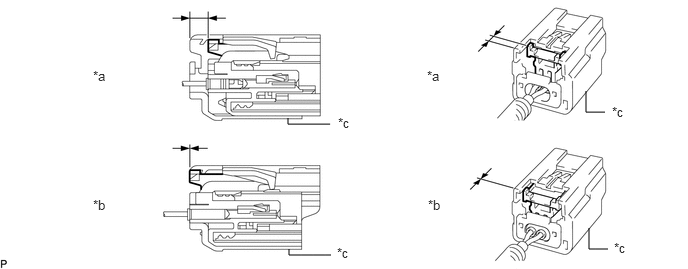

   1. Before connecting the connector, check that the position of the housing lock is correct as shown in the illustration.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Correct	*b	Incorrect
      *c	Yellow CPA	-	-

   2. Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).
      NOTE:

      • When connecting any airbag connector, take care not to damage the airbag wire harness.

      • When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and upper part of the yellow CPA, as it may result in an insecure fit.
3. Connect each connector and engage each clamp under the front seat assembly.
4. Connect the cable to the negative (-) battery terminal.
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Refer to INITIALIZATION [09/2014 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019] , or refer to INITIALIZATION [03/2019 - 01/2023] , or refer to INITIALIZATION [01/2023 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

5. Temporarily install the front seat assembly with the 4 bolts.
6. Operate the slide and vertical power seat switch knob and move the front seat assembly to the rearmost position.
7. Tighten the 2 bolts on the front side of the front seat assembly.
   Fig 1: Front Side Of Front Seat Assembly Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 36.8 N.m (375 kgf/cm, 27 ft.lbf)

   NOTE:

   Tighten the bolts in the order shown in the illustration.

8. Operate the slide and vertical power seat switch knob and move the front seat assembly to the foremost position.
9. Tighten the 2 bolts on the rear side of the front seat assembly.
   Fig 2: Rear Side Of Front Seat Assembly Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 36.8 N.m (375 kgf/cm, 27 ft.lbf)

   NOTE:

   Tighten the bolts in the order shown in the illustration.

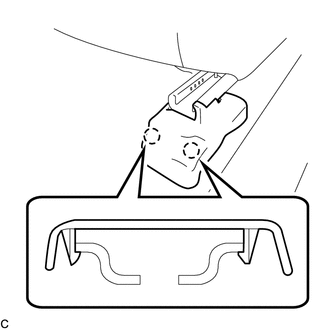

1. Engage the 2 claws to install the inner seat track bracket cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

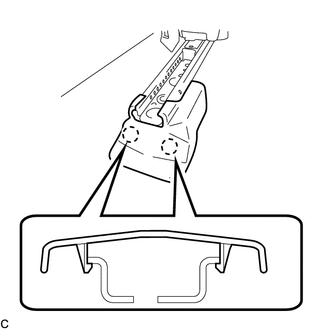

1. Engage the 2 claws to install the rear outer front seat track cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Operate the slide and vertical power seat switch knob and move the front seat assembly to the rearmost position.

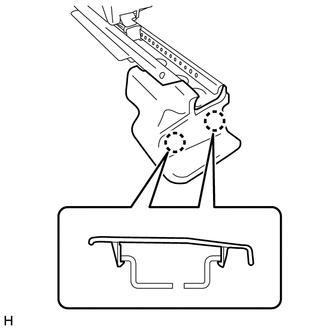

2. Engage the 2 claws to install the front outer seat track bracket cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws to install the front inner seat track bracket cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to OPERATION CHECK [09/2014 - 11/2017] , or refer to OPERATION CHECK [11/2017 - ]

Refer to OPERATION CHECK [09/2014 - ]

Refer to PROCEDURE - Step 2

Refer to DIAGNOSIS SYSTEM [09/2014 - 11/2017] , or refer to DIAGNOSIS SYSTEM [11/2017 - ]

Refer to INITIALIZATION [09/2014 - ]
