Installation [09/2014 - ]: Procedure

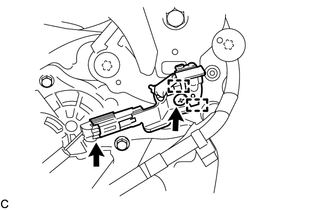

  1. INSTALL LIMIT SWITCH ASSEMBLY (for LH Side)
    1. Engage the 2 guides to install the limit switch assembly.
      GTY498841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
    3. Connect the connector.

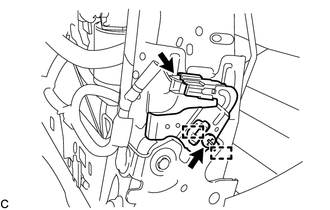

  2. INSTALL LIMIT SWITCH ASSEMBLY (for RH Side)
    1. Engage the 2 guides to install the limit switch assembly.
      GTY498847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
    3. Connect the connector.
  3. INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER RH

    See step  25

  4. INSTALL FRONT SEATBACK PAD WITH COVER

    See step  4

  5. INSTALL NO. 3 FRONT SEAT SHOULDER BELT GUIDE

    See step  29

  6. INSTALL NO. 1 FRONT SEAT SHOULDER BELT GUIDE

    See step  30

  7. INSTALL NO. 2 FRONT SEAT SHOULDER BELT GUIDE

    HINT:

    Perform the same procedure as for the No. 1 front seat shoulder belt guide.

  8. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY

    See step  32

  9. INSTALL RECLINING REMOTE CONTROL CAP

    See step  33

  10. INSTALL FRONT SEAT INNER CUSHION SHIELD

    See step  41

  11. INSTALL FRONT SEAT CUSHION SHIELD

    See step  42

  12. INSTALL INNER NO. 1 FRONT SEAT CUSHION SHIELD

    See step  43

  13. CONNECT FRONT SEATBACK PAD WITH COVER

    See step  44

  14. INSTALL FRONT SEAT ASSEMBLY

    Refer to INSTALLATION [09/2014 - ]
