Components [09/2014 - ]

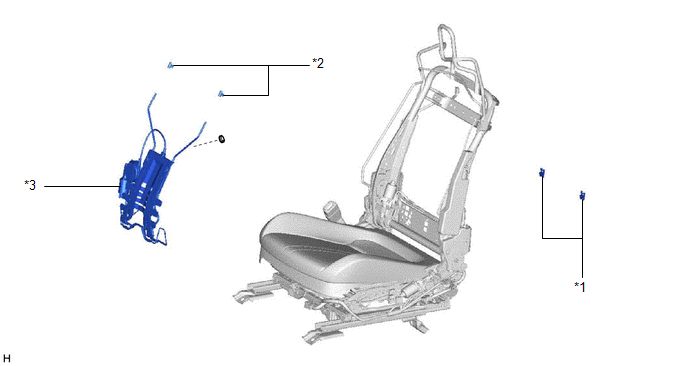

Fig 1: Lumbar Support Adjuster Assembly Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SEAT CUSHION SHIELD	*2	FRONT SEAT INNER CUSHION SHIELD
*3	INNER NO. 1 FRONT SEAT CUSHION SHIELD	-	-

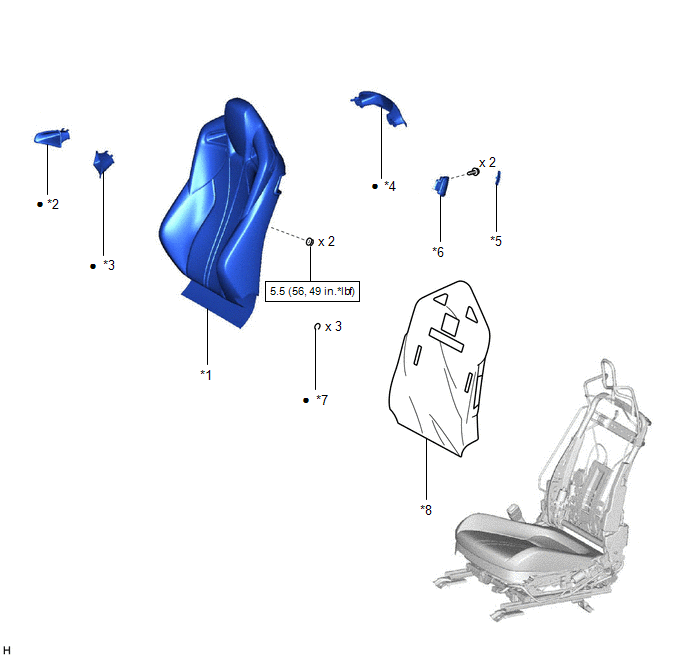

Fig 2: Lumbar Support Adjuster Assembly Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SEATBACK PAD WITH COVER	*2	NO. 1 FRONT SEAT SHOULDER BELT GUIDE
*3	NO. 2 FRONT SEAT SHOULDER BELT GUIDE	*4	NO. 3 FRONT SEAT SHOULDER BELT GUIDE
*5	RECLINING REMOTE CONTROL CAP	*6	RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY
*7	HOG RING	*8	FRONT SEATBACK EDGE PROTECTOR
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

Fig 3: Lumbar Support Adjuster Assembly Replacement Components (3 Of 3)

*1	FRONT SEATBACK EDGE PROTECTOR	*2	FRONT SEATBACK HOOK
*3	LUMBAR SUPPORT ADJUSTER ASSEMBLY	-	-
