Components [09/2014 - ]

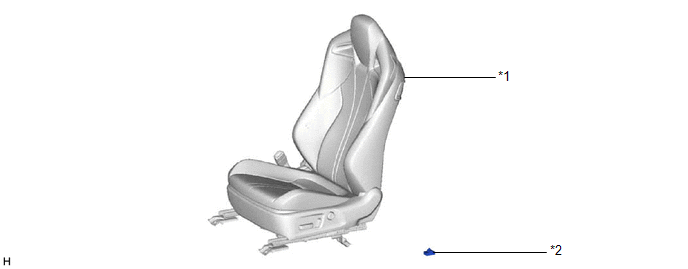

Fig 1: Seat Heater Control Replacement Components

GTY500012

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

FRONT SEAT ASSEMBLY

*2

SEAT HEATER CONTROL SUB-ASSEMBLY
