Installation [09/2014 - ]: Procedure

  1. INSTALL SEAT MEMORY SWITCH

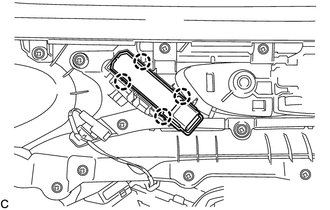

    1. Engage the 4 claws to install the seat memory switch to the front door trim board sub-assembly LH.
      GTY500426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 38 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 37 [03/2019 - ]

  3. INSTALL FRONT DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 39 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 38 [03/2019 - ]

  4. INSTALL COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - ]

  5. INSTALL DOOR TRIM COVER LH

    Refer to PROCEDURE - Step 41 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 40 [03/2019 - ]

  6. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 42 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 41 [03/2019 - ]

  7. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

    Refer to PROCEDURE - Step 44 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 43 [03/2019 - ]

  8. INITIALIZE POWER WINDOW CONTROL SYSTEM

    Refer to INITIALIZATION [09/2014 - ]

  9. INSPECT POWER WINDOW OPERATION

    Refer to OPERATION CHECK [09/2014 - ]
