Windshield Deicer Switch
›
Components [01/2023 - ]
Components [01/2023 - ]

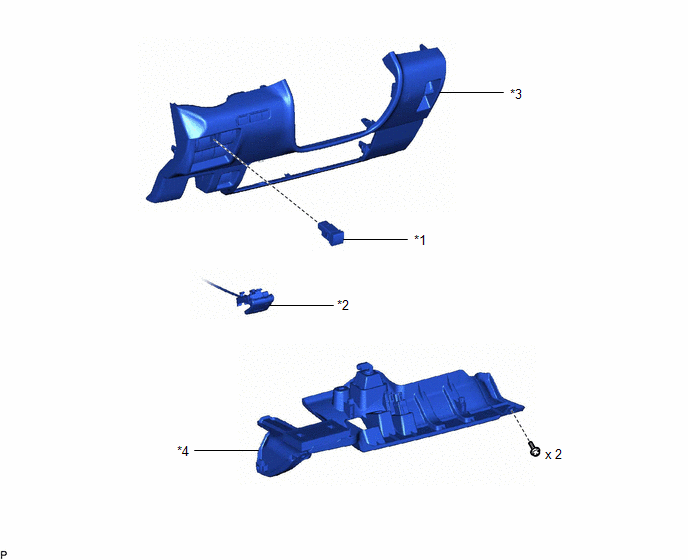

Fig 1: Windshield Deicer Switch Replacement Components [01/2023 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT WIPER DEICER SWITCH
*2
HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*3
LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*4
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
