Components [09/2014 - ]

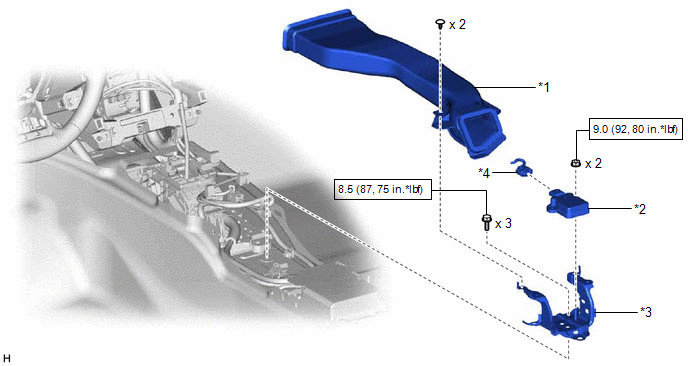

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 CONSOLE BOX DUCT	*2	YAW RATE SENSOR
*3	YAW RATE SENSOR BRACKET	*4	CONNECTOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
