Components [09/2014 - ]

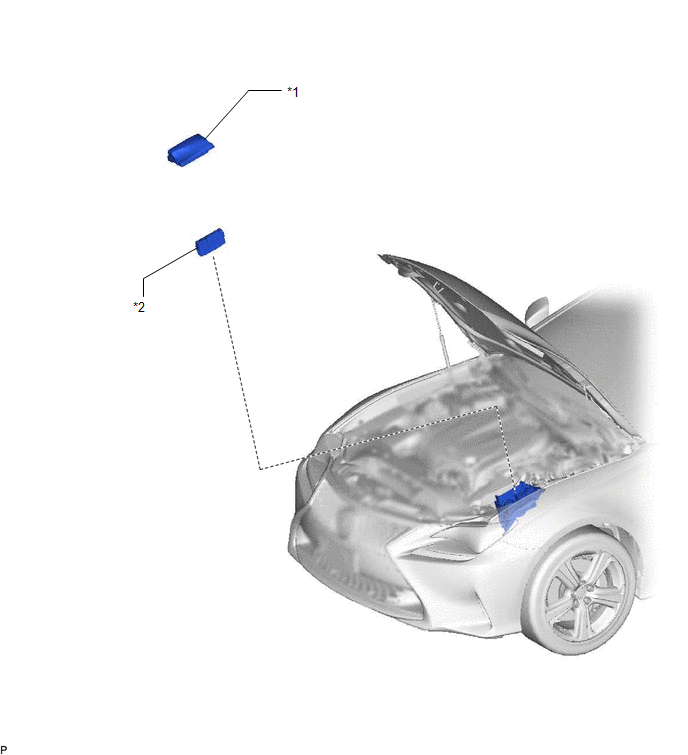

Fig 1: Integration Relay Replacement Components

GTY511408

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

NO. 2 RELAY BLOCK COVER

*2

SEMICONDUCTOR PWR INTEGRATION ECU
