Components [09/2014 - ]

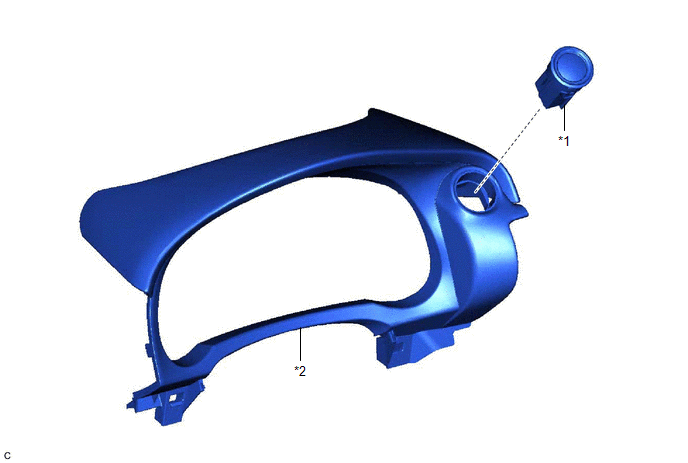

Fig 1: Engine Switch Replacement Components

GTY467167

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

ENGINE SWITCH

*2

METER HOOD SUB-ASSEMBLY
