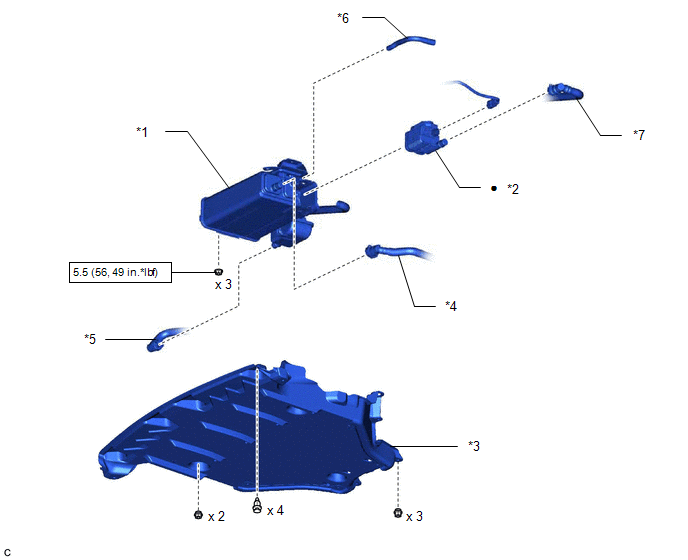

Components [09/2014 - 09/2020]
| *1 | CANISTER (CHARCOAL CANISTER ASSEMBLY) | *2 | LEAK DETECTION PUMP SUB-ASSEMBLY |
| *3 | NO. 1 FLOOR UNDER COVER ASSEMBLY | *4 | VENT LINE HOSE |
| *5 | AIR LINE TUBE | *6 | PURGE LINE HOSE |
| *7 | CHARCOAL CANISTER OUTLET TUBE SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
