Installation [09/2014 - 09/2020]: Procedure

  1. INSTALL LEAK DETECTION PUMP SUB-ASSEMBLY
    1. Engage the 2 claws to install a new leak detection pump sub-assembly to the charcoal canister sub-assembly.

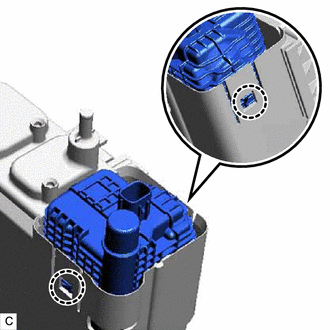

      GTY500905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not allow foreign matter such as grease, oil or water to adhere to the O-rings.
      • Ensure that the claws are engaged properly.
    2. Push the charcoal canister outlet tube sub-assembly onto the leak detection pump sub-assembly and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (leak detection pump sub-assembly) before performing this work.
      • After connecting the charcoal canister outlet tube sub-assembly, check that the charcoal canister outlet tube sub-assembly is securely connected by pulling on the tube connector.

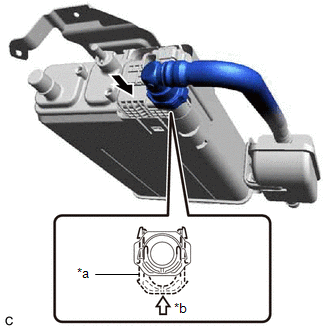

      GTY497632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      *b Push
  2. INSTALL CANISTER (CHARCOAL CANISTER ASSEMBLY)
    1. Install the canister (charcoal canister assembly) with the 3 nuts and clip.

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

    2. Push the air line tube onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe canister (charcoal canister assembly) before performing this work.
      • After connecting the air line tube, check that the air line tube is securely connected by pulling on the tube connector.

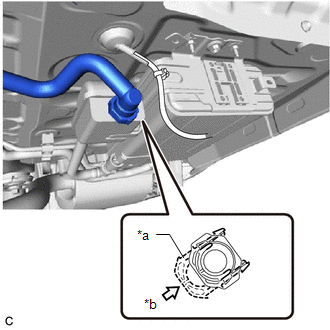

      GTY511904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      *b Push
    3. Install the purge line hose to the canister (charcoal canister assembly) and slide the 2 clips to secure them.
    4. Push the vent line hose onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.
      • After connecting the vent line hose, check that the vent line hose is securely connected by pulling on the tube connector.

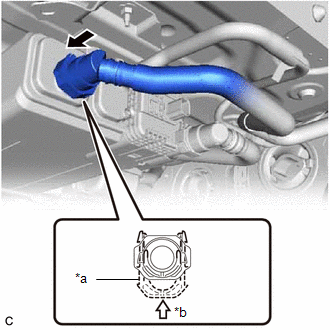

      GTY502968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      *b Push
    5. Connect the leak detection pump sub-assembly connector.
    6. Engage the 4 wire harness clamps to the canister (charcoal canister assembly).
  3. INSTALL NO. 1 FLOOR UNDER COVER ASSEMBLY
    1. Install the No. 1 floor under cover assembly with the 4 clips and 5 grommets.
