Components [09/2014 - ]

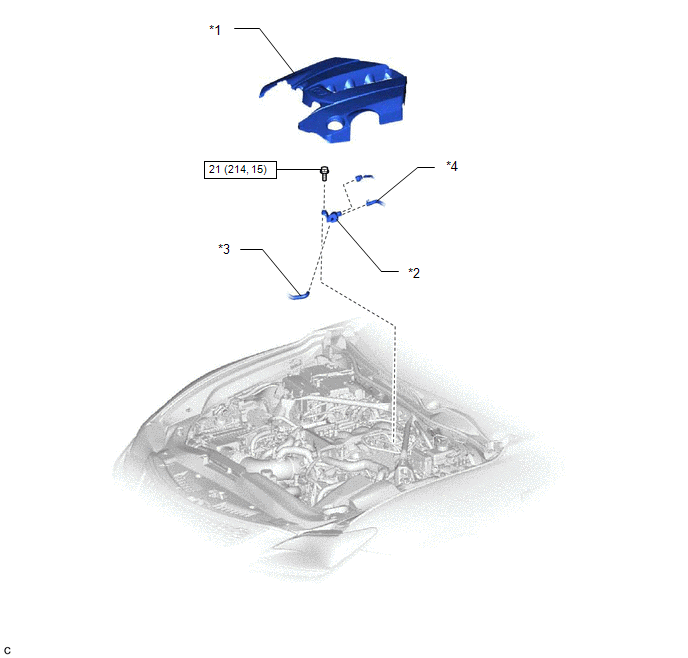

Fig 1: Purge Valve Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	V-BANK COVER SUB-ASSEMBLY	*2	PURGE VALVE (PURGE VSV)
*3	FUEL VAPOR FEED HOSE	*4	NO. 1 FUEL VAPOR FEED HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
