Components [09/2014 - ]

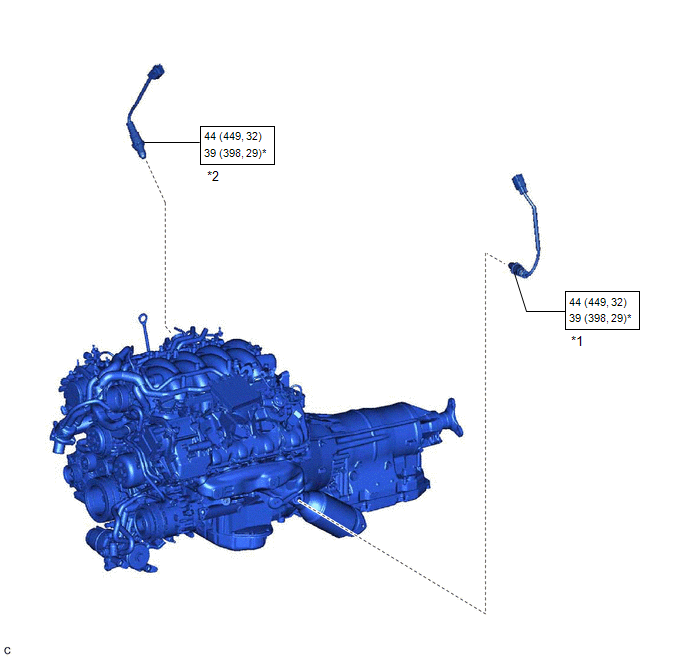

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR FUEL RATIO SENSOR (for Bank 1)	*2	AIR FUEL RATIO SENSOR (for Bank 2)
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
