Components [08/2016 - 01/2023]

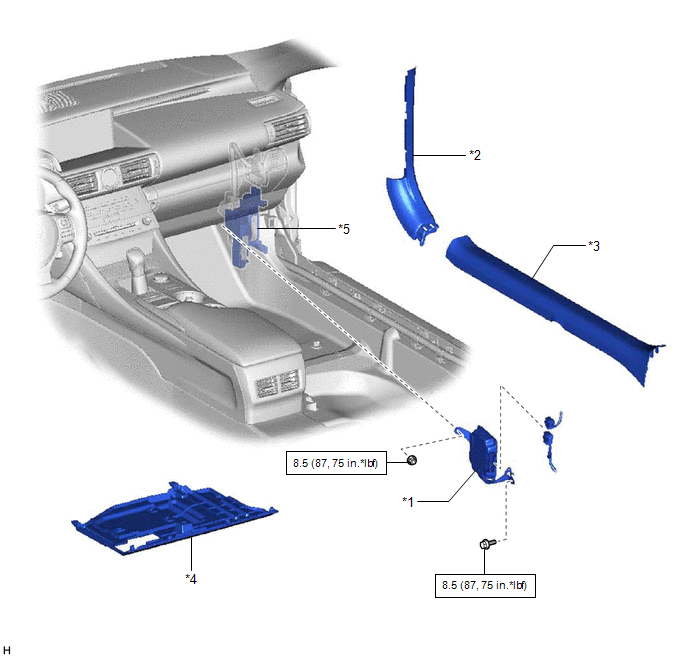

Fig 1: Suspension Control ECU Replacement Components With Torque Specification [08/2016 - 01/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ABSORBER CONTROL ECU	*2	FRONT DOOR OPENING TRIM COVER RH
*3	FRONT DOOR SCUFF PLATE RH	*4	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*5	CONNECTOR HOLDER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
