Components [09/2014 - ]

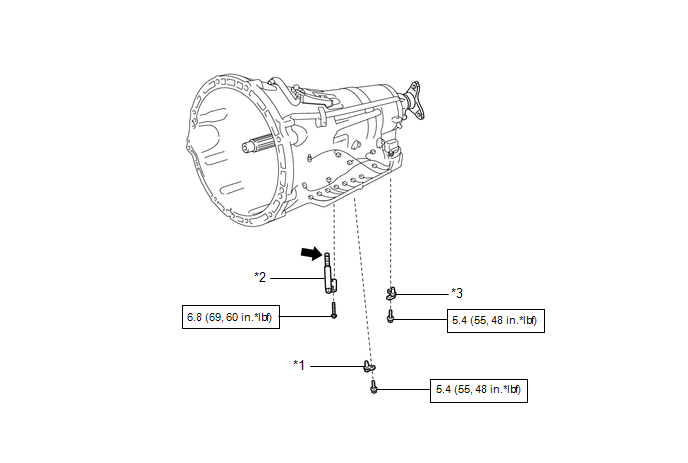

Fig 1: Speed Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TRANSMISSION REVOLUTION SENSOR (NC3)	*2	TRANSMISSION REVOLUTION SENSOR (NT)
*3	TRANSMISSION REVOLUTION SENSOR (SP2)	-	-
	N.m (kgf/cm, ft.lbf): Specified torque		ATF WS
