Components [09/2014 - ]

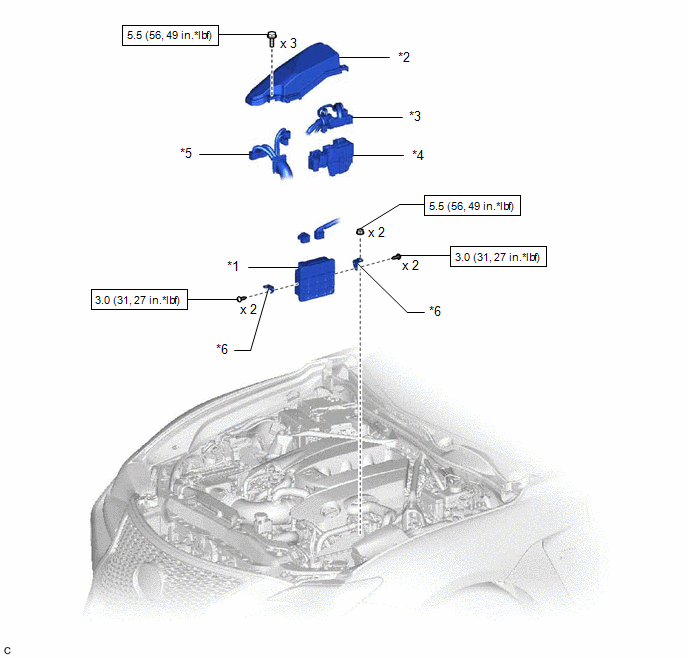

Fig 1: TCM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TCM	*2	ENGINE ROOM ECU COVER
*3	ENGINE WIRE	*4	CONNECTOR HOLDER
*5	ECM WIRE HARNESS	*6	BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
