Navigation Receiver Assembly Power Source Circuit [09/2014 - 11/2017]
›
Wiring Diagram

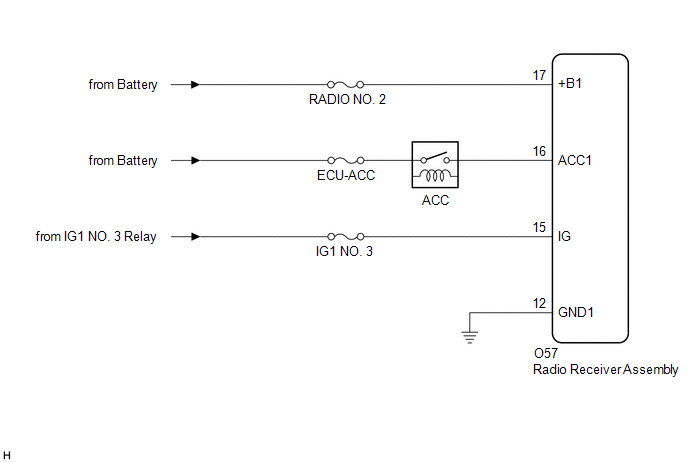

Navigation Receiver Assembly Power Source Circuit [09/2014 - 11/2017]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
