Removal [01/2023 - ]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)

    Refer to PROCEDURE - Step 28

  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 10.3 Inch Display)

    Refer to PROCEDURE - Step 29

  3. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET

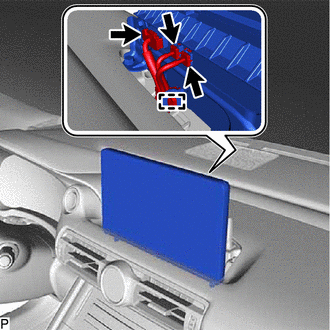

    1. Disconnect each connector.
      GTY970754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

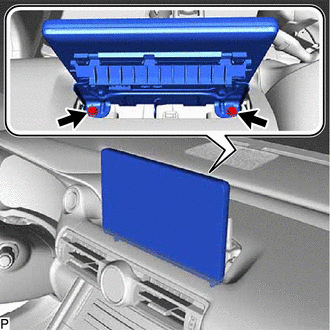

    3. Remove the 2 bolts.
      GTY970758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

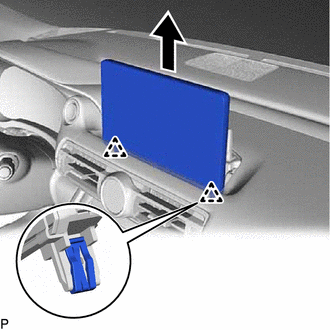

    4. Disengage the 2 clips to remove the multi-display assembly with bracket as shown in the illustration.
      GTY970756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 MULTI-DISPLAY BRACKET
    1. for 8 Inch Display:

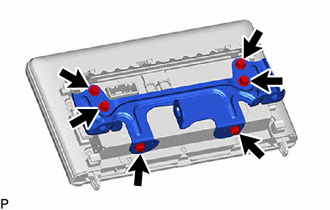

      1. Remove the 6 screws and No. 1 multi-display bracket.
        GTY970687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for 10.3 Inch Display:

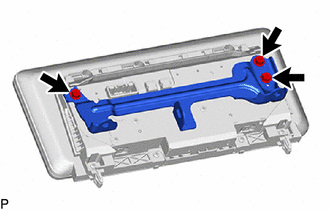

      1. Remove the 3 screws and No. 1 multi-display bracket.
        GTY970805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE MULTI-DISPLAY ASSEMBLY
