Components [09/2014 - 11/2017]

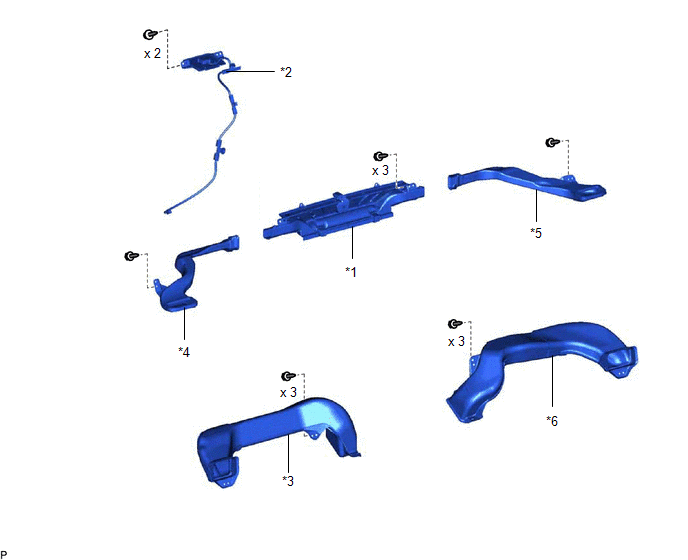

Fig 1: Navigation Antenna Replacement Components [09/2014 - 11/2017]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DEFROSTER NOZZLE ASSEMBLY	*2	NAVIGATION ANTENNA ASSEMBLY
*3	NO. 1 HEATER TO REGISTER DUCT	*4	NO. 1 SIDE DEFROSTER NOZZLE DUCT
*5	NO. 2 SIDE DEFROSTER NOZZLE DUCT	*6	NO. 3 HEATER TO REGISTER DUCT
