Components [09/2014 - ]

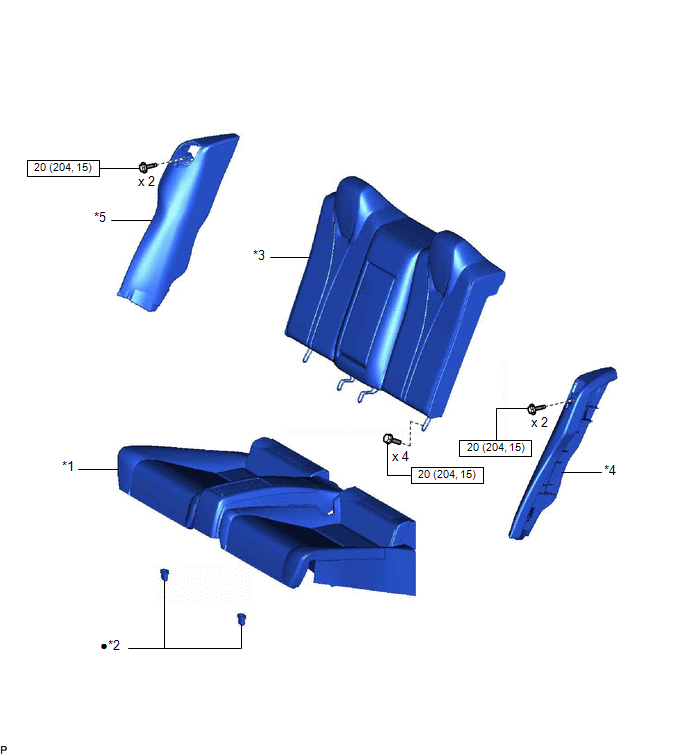

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR SEAT CUSHION ASSEMBLY	*2	REAR SEAT CUSHION LOCK HOOK
*3	REAR SEATBACK ASSEMBLY	*4	REAR SIDE SEATBACK ASSEMBLY LH
*5	REAR SIDE SEATBACK ASSEMBLY RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

Fig 2: Rear Seat Assembly Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH	*2	REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

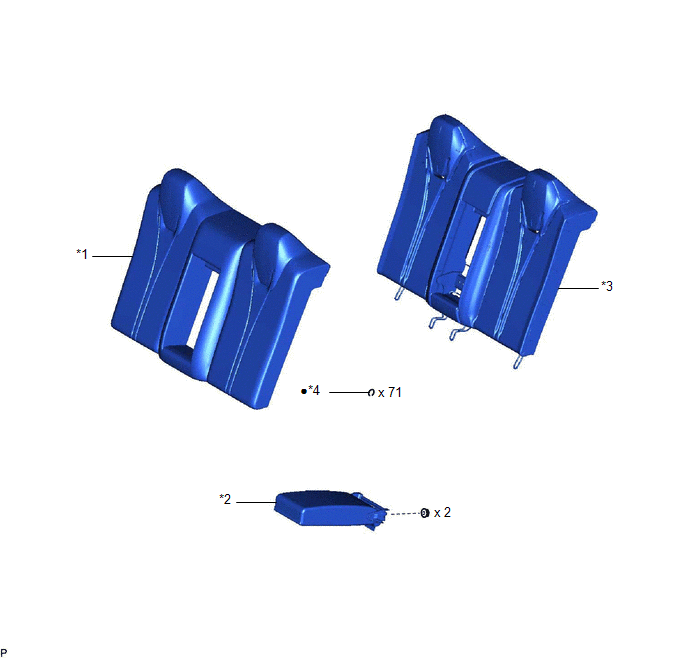

Fig 3: Rear Seat Assembly Replacement Components (3 Of 4)

*1	BENCH TYPE REAR SEATBACK COVER	*2	REAR SEAT CENTER ARMREST ASSEMBLY
*3	BENCH TYPE REAR SEATBACK PAD	*4	HOG RING
•	Non-reusable part	-	-

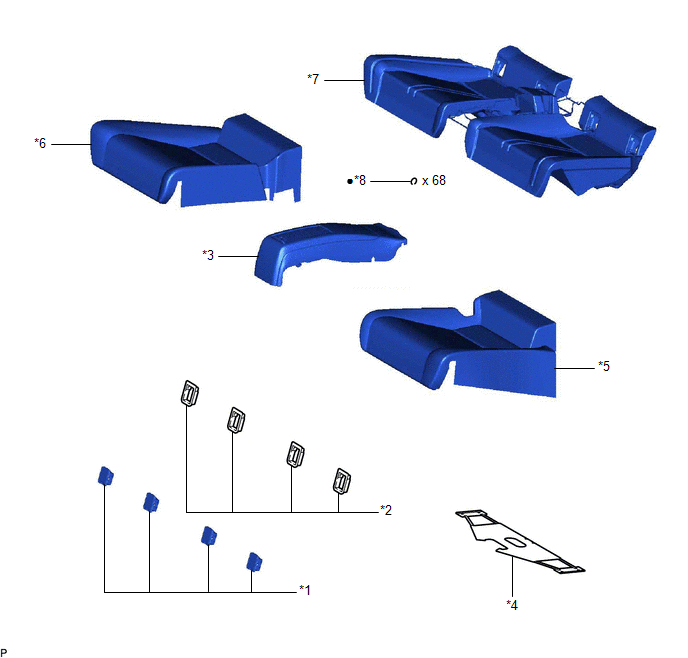

Fig 4: Rear Seat Assembly Replacement Components (4 Of 4)

*1	NO. 1 CHILD RESTRAINT SEAT COVER	*2	NO. 2 CHILD RESTRAINT SEAT COVER
*3	REAR SEAT CONSOLE BOX ASSEMBLY	*4	REAR SEAT CUSHION UNDER COVER
*5	SEPARATE TYPE REAR SEAT CUSHION COVER LH	*6	SEPARATE TYPE REAR SEAT CUSHION COVER RH
*7	SEPARATE TYPE REAR SEAT CUSHION PAD	*8	HOG RING
•	Non-reusable part	-	-
