Installation [09/2014 - 01/2023]: Procedure

  1. INSTALL FRONT WIPER DEICER SWITCH

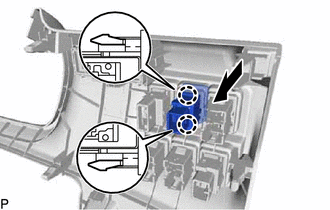

    1. Engage the 2 claws to install the front wiper deicer switch as shown in the illustration.
      GTY514407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 34 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 34 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 34 [03/2019 - 09/2020] , or refer to PROCEDURE - Step 34 [09/2020 - 01/2023]

  3. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 35 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 35 [03/2019 - 09/2020] , or refer to PROCEDURE - Step 35 [09/2020 - 01/2023]

  4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 36 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 36 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 36 [03/2019 - 09/2020] , or refer to PROCEDURE - Step 36 [09/2020 - 01/2023]
