Removal [09/2014 - ]: Procedure

  1. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE ENGINE SWITCH

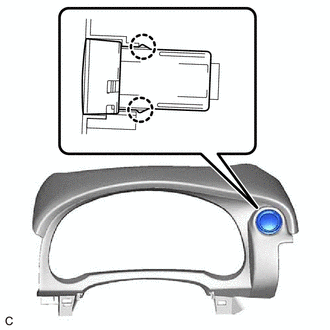

    1. Disengage the 2 claws and remove the engine switch.
      GTY463517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
