Removal [09/2014 - ]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 10 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 10 [03/2019 - ]

  2. REMOVE ENGINE OIL TEMPERATURE SENSOR

    Refer to REMOVAL [09/2014 - ]

  3. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the engine oil pressure switch assembly connector.

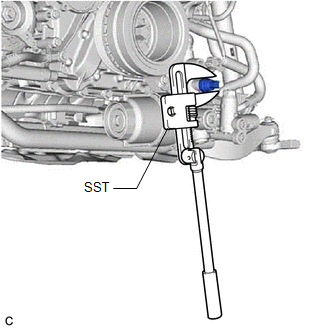

    2. Using SST, remove the engine oil pressure switch assembly.
      GTY511075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09922-10010
