Disassembly [09/2014 - ]: Procedure

  1. REMOVE OIL PUMP COVER
    1. Remove the 13 bolts and oil pump cover from the timing chain cover assembly.
      GTY518393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

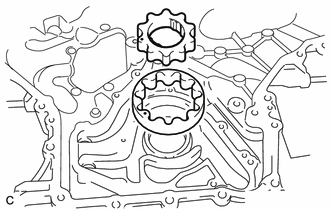

  2. REMOVE OIL PUMP ROTOR SET
    1. Remove the oil pump rotor set from the timing chain cover assembly.
      GTY142068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE OIL PUMP RELIEF VALVE
    1. Using a 27 mm socket wrench, remove the oil pump relief valve plug.
      GTY497333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil pump relief valve spring and oil pump relief valve.
