Reassembly [09/2014 - ]: Procedure

  1. INSTALL OIL PUMP RELIEF VALVE
    1. Coat the oil pump relief valve with engine oil.
    2. Insert the oil pump relief valve and oil pump relief valve spring into the oil pump cover hole.
    3. Using a 27 mm socket wrench, install the oil pump relief valve plug.

      Torque: 53 N.m (540 kgf/cm, 39 ft.lbf)

  2. INSTALL OIL PUMP ROTOR SET

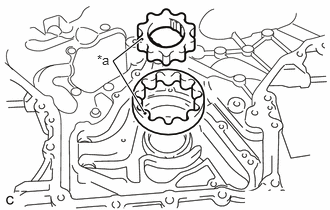

    1. Coat the oil pump rotor set with engine oil and place the oil pump rotor set into the timing chain cover assembly with the marks facing up (oil pump cover side). Check that the oil pump rotor set rotates smoothly.
      GTY508553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark
  3. INSTALL OIL PUMP COVER

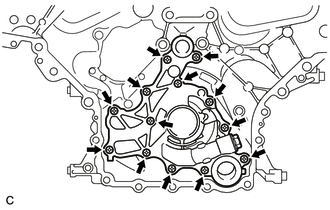

    1. Install the oil pump cover with the 13 bolts.
      GTY518393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10.3 N.m (105 kgf/cm, 8 ft.lbf)
