Removal [09/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2014 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019] , or refer to INITIALIZATION [03/2019 - 01/2023] , or refer to INITIALIZATION [01/2023 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  3. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  4. REMOVE PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 2

  5. REMOVE FRONT SUSPENSION UPPER TO COWL BRACE LH

    Refer to PROCEDURE - Step 33 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 34 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 33 [03/2019 - ]

  6. REMOVE FRONT SUSPENSION UPPER TO COWL BRACE RH

    Refer to PROCEDURE - Step 34 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 35 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 34 [03/2019 - ]

  7. REMOVE FRONT SUSPENSION UPPER BRACE BRACKET

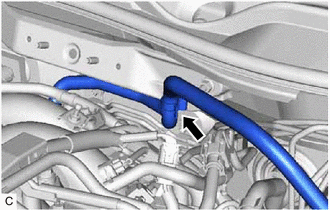

    1. Disconnect the union to check valve hose from the front suspension upper brace bracket.
      GTY499988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

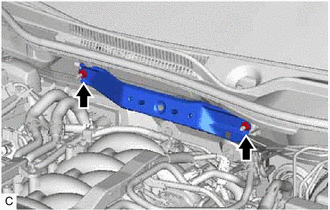

    2. Remove the 2 nuts and front suspension upper brace bracket from the vehicle body.
      GTY499989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE INJECTOR DRIVER

    Refer to PROCEDURE - Step 4

  9. DISCONNECT UNION TO CHECK VALVE HOSE

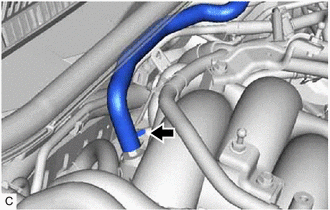

    1. Slide the clip and disconnect the union to check valve hose from the intake air surge tank assembly.
      GTY518044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE ENGINE ROOM ECU COVER

    Refer to PROCEDURE - Step 3

  11. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 10 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 10 [03/2019 - ]

  12. DISENGAGE ENGINE WIRE
    1. Remove the 2 bolts and 4 nuts.
      GTY513218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
      Connector Fuel Tube Sub-assembly
    2. Disengage the 4 clamps.
    3. Disconnect the 12 connectors.
    4. Disengage the fuel tube sub-assembly from the engine wire.

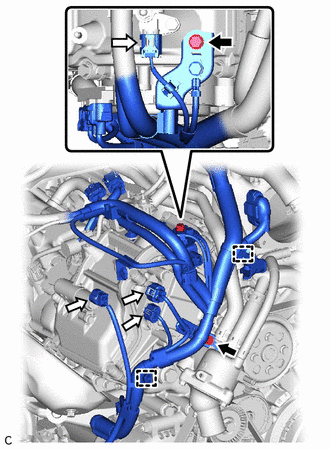

    5. Remove the 2 bolts.
      GTY510380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    6. Disengage the 2 clamps.
    7. Disconnect the 4 connectors.

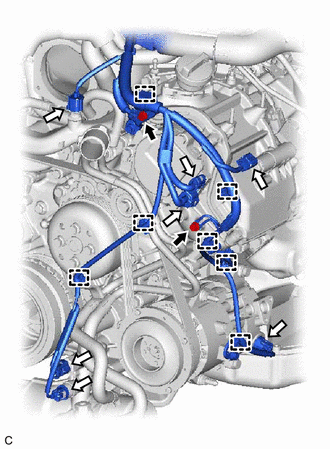

    8. Remove the 2 bolts.
      GTY518819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    9. Disengage the 7 clamps.
    10. Disconnect the 7 connectors.

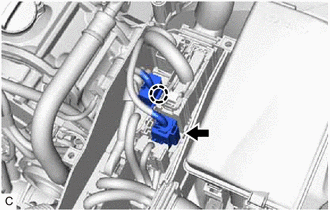

    11. Disengage the claw and disconnect the engine wire harness.
      GTY499998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Disconnect the engine wire harness connector.
    13. Disengage the wire harness from the engine room ECU box.

      Refer to PROCEDURE - Step 4

  13. DISCONNECT NO. 5 ENGINE WIRE

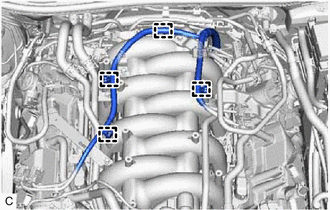

    1. Disengage the 4 clamps and disconnect the No. 5 engine wire from the intake air surge tank assembly.
      GTY516796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. DISCONNECT VACUUM HOSE SUB-ASSEMBLY

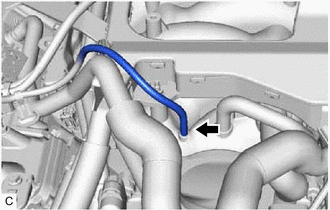

    1. Disconnect the vacuum hose sub-assembly from the intake air surge tank assembly.
      GTY499995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FUEL VAPOR FEED HOSE

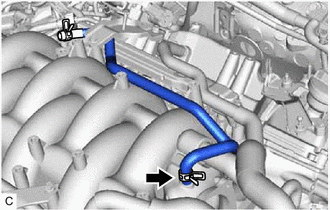

    1. Slide the clip and remove the fuel vapor feed hose from the intake air surge tank assembly.
      GTY500002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. DISCONNECT VENTILATION HOSE

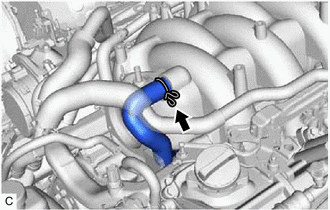

    1. Slide the clip and disconnect the ventilation hose from the intake air surge tank assembly.
      GTY518046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE INJECTOR DRIVER BRACKET

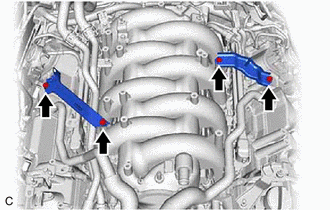

    1. Remove the 4 bolts and 2 injector driver brackets from the intake air surge tank assembly, cylinder head cover sub-assembly LH and cylinder head cover sub-assembly.
      GTY500005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE WATER BY-PASS PIPE SUB-ASSEMBLY

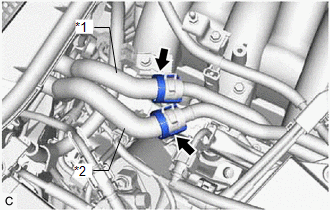

    1. Remove the 2 water hose sets from the heater water inlet hose and heater water outlet hose.
      GTY507061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Heater Water Inlet Hose
      *2 Heater Water Outlet Hose
    2. Slide the clip and disconnect the No. 3 water by-pass hose from the water by-pass pipe sub-assembly.
      GTY514417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Heater Water Inlet Hose
      *2 Heater Water Outlet Hose
      *3 No. 3 Water By-pass Hose
      *4 Water By-pass Hose
      *5 No. 5 Water By-pass Hose
    3. Slide the clip and disconnect the water by-pass hose from the water by-pass pipe sub-assembly.
    4. Slide the clip and disconnect the No. 5 water by-pass hose from the water by-pass pipe sub-assembly.
    5. Slide the clip and disconnect the heater water outlet hose from the water by-pass pipe sub-assembly.
    6. Slide the clip and disconnect the heater water inlet hose from the water by-pass pipe sub-assembly.

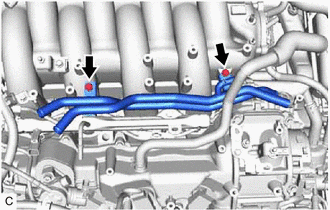

    7. Remove the 2 bolts and water by-pass pipe sub-assembly from the intake air surge tank assembly.
      GTY499978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  20. REMOVE NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  21. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  22. REMOVE NO. 1 DELIVERY PIPE SPACER

    Refer to PROCEDURE - Step 17

  23. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 18

  24. REMOVE FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 19

  25. REMOVE V-BANK COVER BRACKET SUB-ASSEMBLY

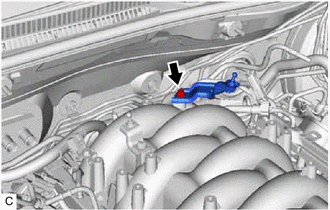

    1. Remove the bolt and V-bank cover bracket sub-assembly from the intake air surge tank assembly.
      GTY499977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE NO. 2 V-BANK COVER BRACKET SUB-ASSEMBLY

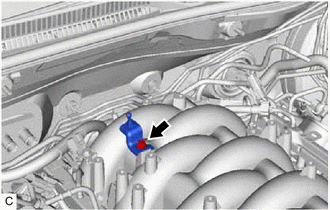

    1. Remove the bolt and No. 2 V-bank cover bracket sub-assembly from the intake air surge tank assembly.
      GTY516800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. DISCONNECT NO. 1 FUEL PIPE SUB-ASSEMBLY

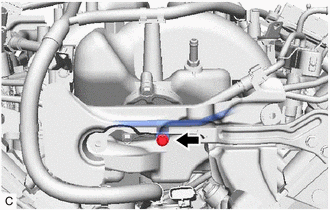

    1. Remove the bolt and disconnect the No. 1 fuel pipe sub-assembly from the intake air surge tank assembly.
      GTY499980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

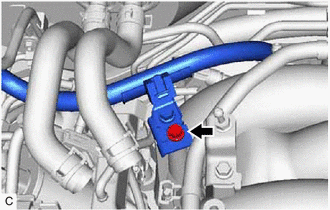

    1. Remove the bolt and disconnect the wire harness bracket from the intake air surge tank assembly.
      GTY499996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

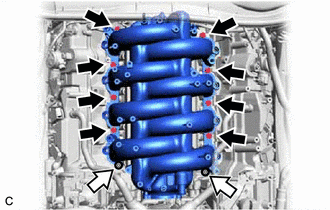

    2. Remove the 8 bolts and 2 nuts.
      GTY510297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

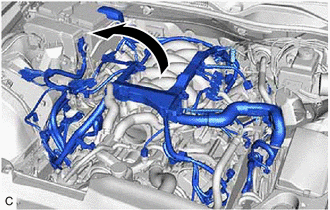

    3. Pull the engine wire as shown in the illustration.
      GTY516697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

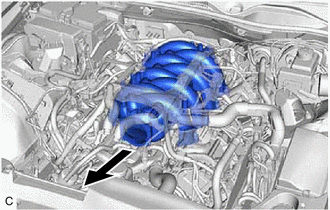

    4. Remove the intake air surge tank assembly from the cylinder block sub-assembly.
      GTY516698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 No. 1 intake manifold to head gaskets from the cylinder block sub-assembly.
