Engine Control System - Circuit Tests (2 Of 3)
›
SFI System
›
Air Intake Control Circuit [09/2014 - ]
›
Wiring Diagram

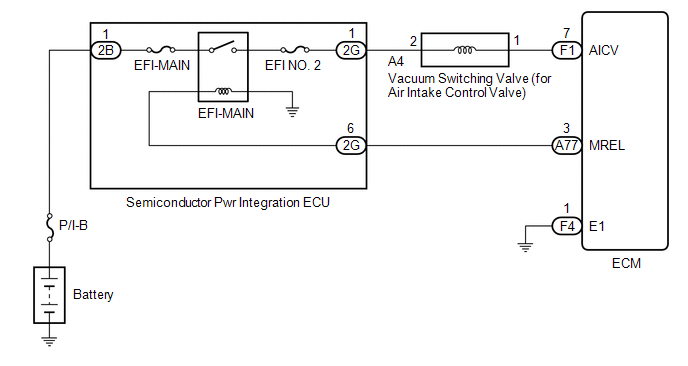

Air Intake Control Circuit [09/2014 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
