Parts Location [01/2023 - ]: Illustration

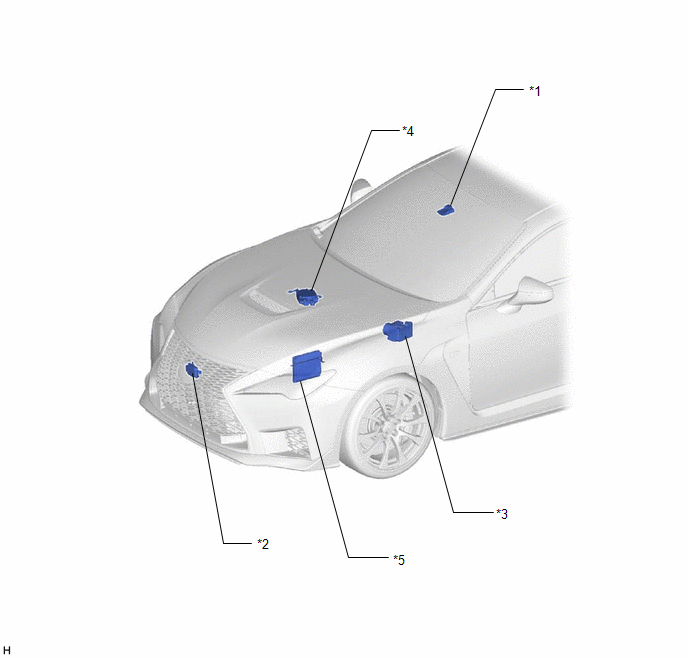

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)	*4	POWER STEERING ECU ASSEMBLY
*5	ECM	-	-

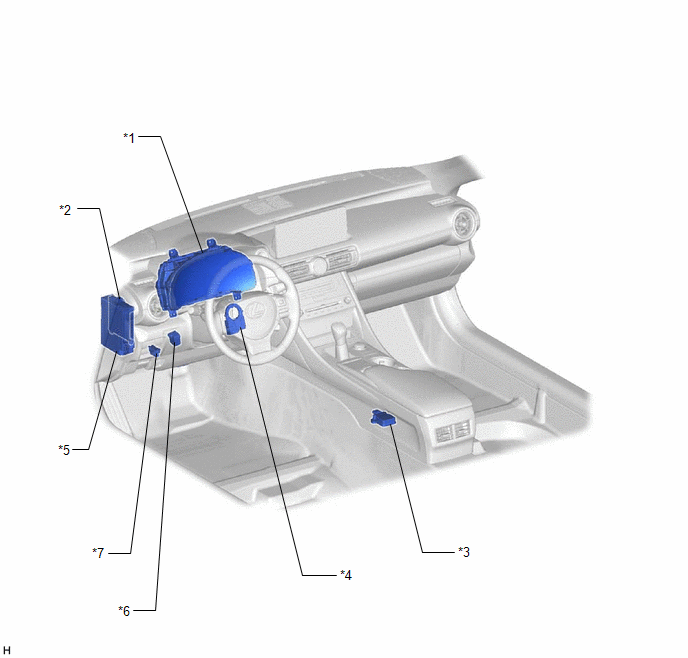

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COMBINATION METER ASSEMBLY	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	YAW RATE SENSOR	*4	STEERING SENSOR
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE	*6	SKID CONTROL BUZZER ASSEMBLY
*7	DLC3	-	-
