Components [09/2014 - ]

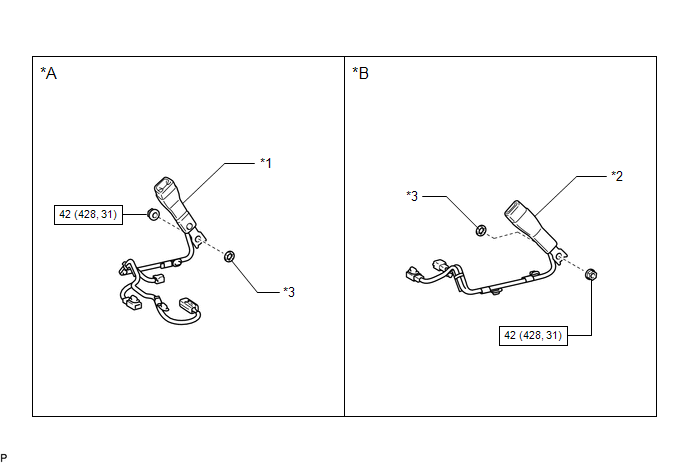

Fig 1: Front Seat Inner Belt Assembly Replacement Components With Torque Specifications
GTY512519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Driver Side *B for Front Passenger Side
*1 FRONT SEAT INNER BELT ASSEMBLY LH *2 FRONT SEAT INNER BELT ASSEMBLY RH
*3 FRONT SEAT BELT ANCHOR PLATE - -
N.m (kgf/cm, ft.lbf): Specified torque - -
