Components [09/2015 - ]

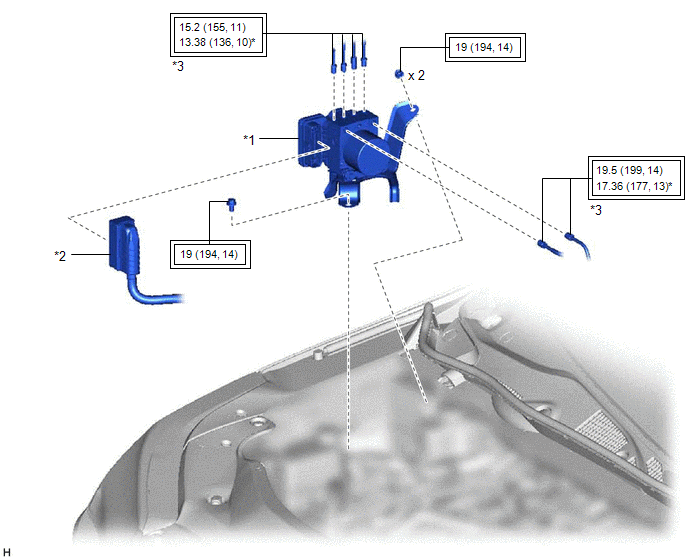

Fig 1: Brake Actuator Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BRAKE ACTUATOR WITH BRACKET	*2	CONNECTOR
*3	BRAKE LINE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	*	For use with a union nut wrench

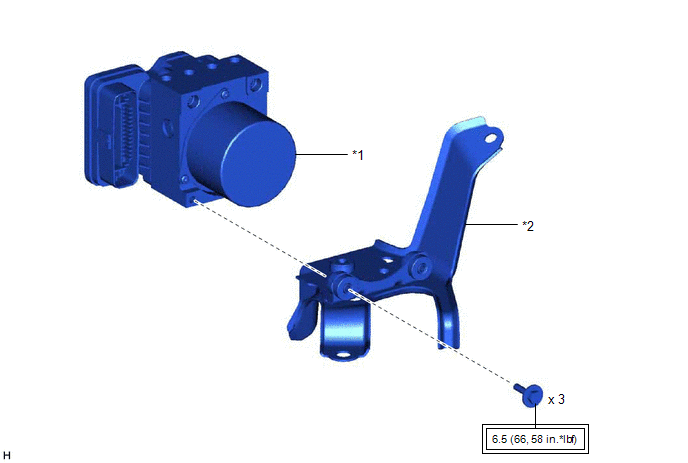

Fig 2: Brake Actuator Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	BRAKE ACTUATOR ASSEMBLY	*2	BRAKE ACTUATOR BRACKET ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	-	-
