Components [09/2015 - 08/2016]

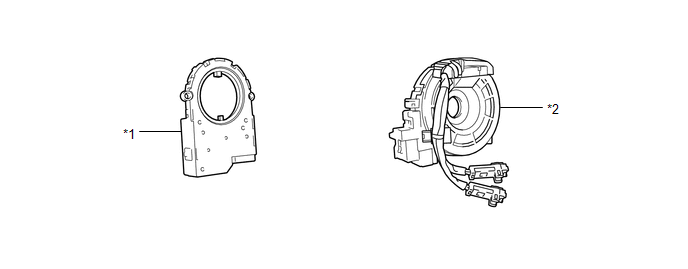

Fig 1: Steering Angle Sensor Replacement Components [09/2015 - 08/2016]

GTY656682

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

STEERING SENSOR

*2

SPIRAL CABLE SUB-ASSEMBLY
