Components [09/2015 - ]

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FRONT NO. 2 CONSOLE BOX INSERT

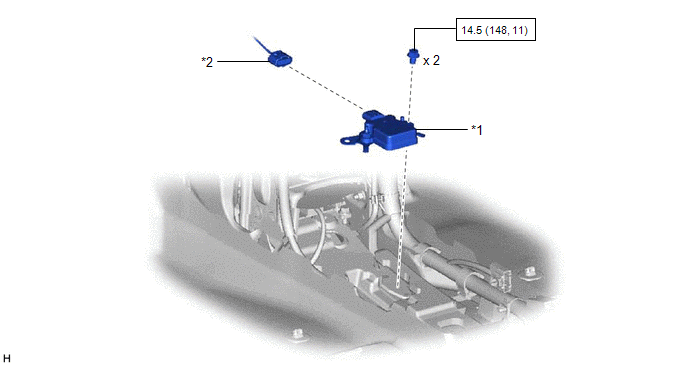

Fig 2: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	YAW RATE SENSOR ASSEMBLY	*2	CONNECTOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
