Removal [09/2015 - 08/2016]: Procedure

  1. REMOVE FRONT FRAME ASSEMBLY

    Refer to REMOVAL [09/2015 - 08/2016]

  2. REMOVE FRONT ENGINE MOUNTING INSULATOR

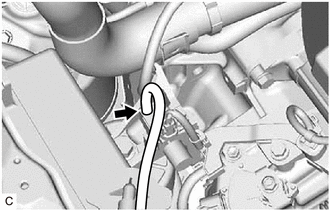

    1. Disconnect the vacuum hose from the No. 2 vacuum switching valve assembly.
      GTY659069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and front engine mounting insulator from the front engine mounting bracket.
      GTY682759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
