Components [09/2015 - ]

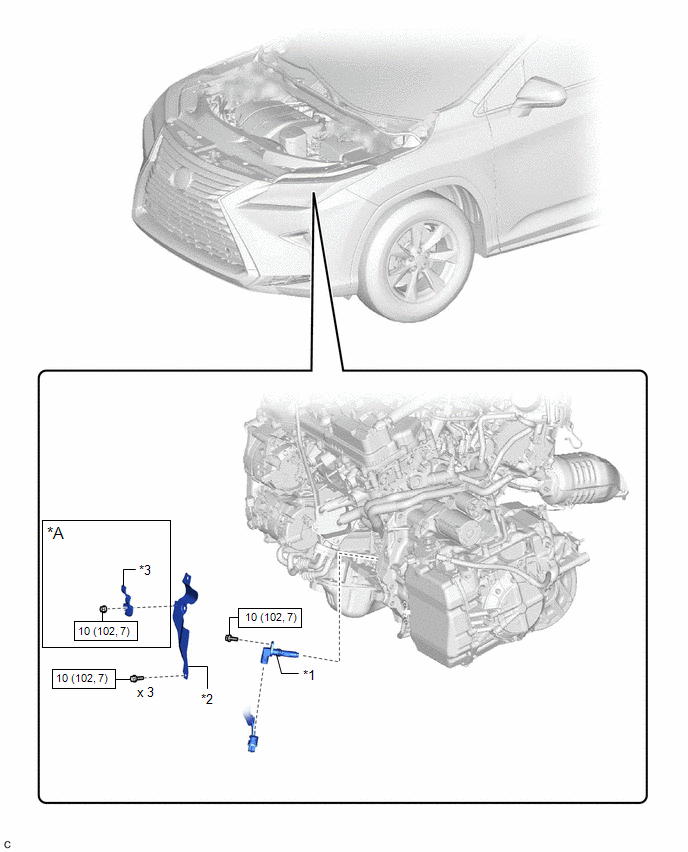

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY669712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Oil Cooler - -
*1 CRANKSHAFT POSITION SENSOR *2 CRANKSHAFT POSITION SENSOR PROTECTOR
*3 HOSE CLAMP - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
