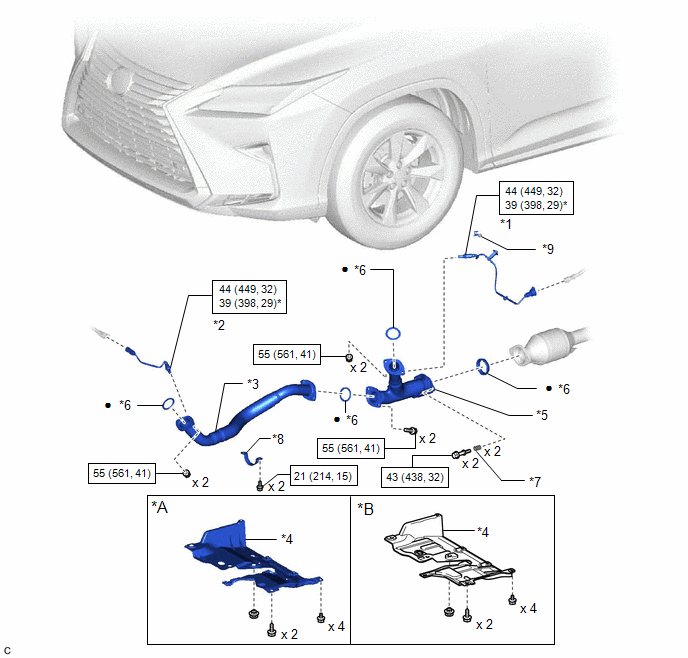

Components [09/2015 - ]
| Callout | Description | Callout | Description |
| *A | for TMC Made | *B | for TMMC Made |
| *1 | HEATED OXYGEN SENSOR (for Bank 1) | *2 | HEATED OXYGEN SENSOR (for Bank 2) |
| *3 | FRONT EXHAUST PIPE ASSEMBLY | *4 | FRONT FLOOR COVER LH |
| *5 | FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY | *6 | EXHAUST PIPE GASKET |
| *7 | COMPRESSION SPRING | *8 | NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side) |
| *9 | WIRE HARNESS CLAMP BRACKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | - | - |
