Components [09/2015 - ]

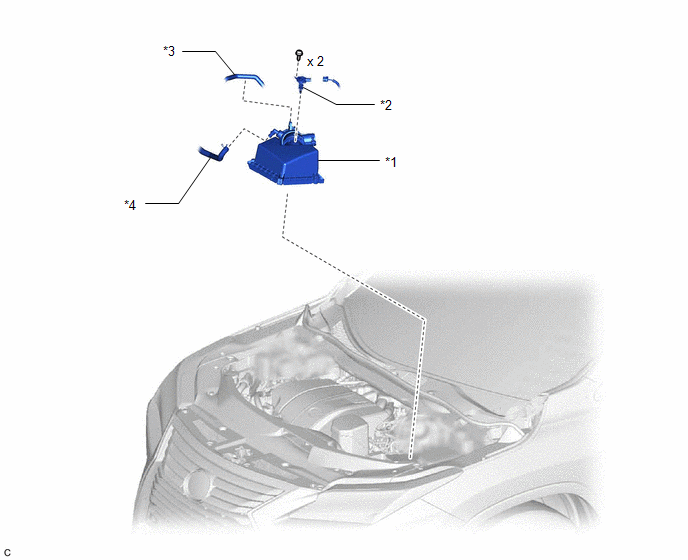

Fig 1: Mass Air Flow Meter Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CLEANER CAP WITH AIR CLEANER HOSE	*2	MASS AIR FLOW METER SUB-ASSEMBLY
*3	NO. 1 FUEL VAPOR FEED HOSE	*4	NO. 2 VENTILATION HOSE
