Components [09/2015 - ]

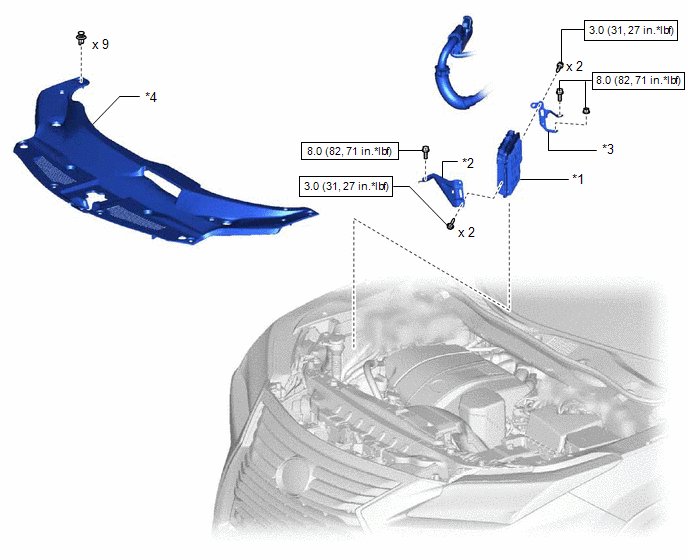

Fig 1: ECM Replacement Components With Torque Specifications
GTY669709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECM *2 NO. 1 ECM BRACKET
*3 NO. 2 ECM BRACKET *4 COOL AIR INTAKE DUCT SEAL
N*m (kgf*cm, ft.*lbf): Specified torque - -
