Installation [10/2015 - 03/2018]: Procedure
- INSTALL SKID CONTROL ECU ASSEMBLY

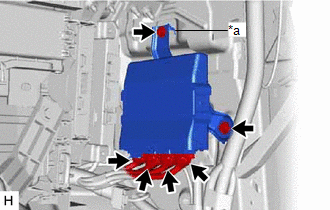

- Engage the claw of the skid control ECU assembly to the vehicle body.
*a Claw - Install the skid control ECU assembly to the vehicle body with the 2 bolts.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
- Connect the 4 connectors to the skid control ECU assembly.
- Install the connector holder with the 2 nuts.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Engage the claw of the skid control ECU assembly to the vehicle body.
- INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 15 [10/2015 - 12/2017] Refer to PROCEDURE - Step 15 [12/2017 - 03/2018]
- INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 8 [10/2015 - 12/2017] Refer to PROCEDURE - Step 7 [12/2017 - 08/2019]
- INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16 [10/2015 - 12/2017] Refer to PROCEDURE - Step 16 [12/2017 - 03/2018]
- INSTALL INSTRUMENT PANEL GARNISH RH
Refer to PROCEDURE - Step 19 [10/2015 - 12/2017] Refer to PROCEDURE - Step 19 [12/2017 - 03/2018]
- INSTALL COWL SIDE TRIM BOARD RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 2
- INSTALL FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 43 [10/2015 - 12/2017] Refer to PROCEDURE - Step 42 [12/2017 - ]
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
- PERFORM INITIALIZATION AND CALIBRATION OF LINEAR SOLENOID VALVE
Refer to INITIALIZATION [10/2015 - 08/2018]
- PERFORM YAW RATE AND ACCELERATION SENSOR ZERO POINT CALIBRATION
Refer to CALIBRATION [10/2015 - 08/2018]
- PERFORM TEST MODE INSPECTION
Refer to TEST MODE PROCEDURE [10/2015 - 08/2016] Refer to TEST MODE PROCEDURE [08/2016 - 08/2018]
- CHECK AND CLEAR DTC
