Removal [08/2019 - ]: Procedure

  1. REMOVE REAR CONSOLE UPPER PANEL

    Refer to PROCEDURE - Step 1

  2. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 2

  3. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3

  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 5

  6. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE CONSOLE BOX ORNAMENT

    Refer to PROCEDURE - Step 7

  8. REMOVE VSC OFF SWITCH (COMBINATION SWITCH ASSEMBLY)

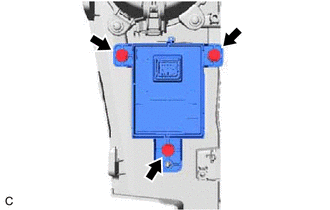

    1. Remove the 3 screws and VSC OFF switch (combination switch assembly) from the console box ornament.
      GTY647109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
