Installation [10/2015 - 03/2018]: Procedure

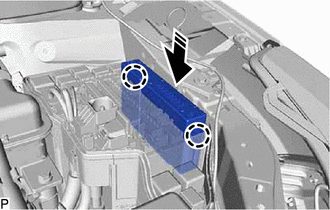

- INSTALL SEMICONDUCTOR POWER INTEGRATION ECU
- INSTALL NO. 1 RELAY BLOCK COVER

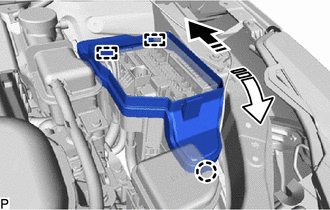

- Engage the 2 guides and claw to install the No. 1 relay block cover as indicated by the arrows, in the order shown in the illustration.

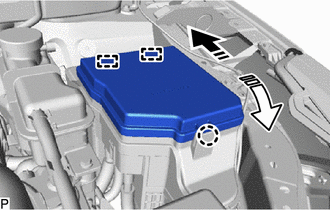

Install in this Direction (1) Install in this Direction (2) - Engage the 2 guides and claw to install the No. 1 relay block cover as indicated by the arrows, in the order shown in the illustration.
Install in this Direction (1) Install in this Direction (2)
- Engage the 2 guides and claw to install the No. 1 relay block cover as indicated by the arrows, in the order shown in the illustration.
- INSTALL NO. 6 INVERTER BRACKET
Refer to PROCEDURE - Step 20 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 19 [08/2016 - ]
- INSTALL WIRING HARNESS CLAMP BRACKET
- Install the wiring harness clamp bracket with the 2 bolts.
Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)
- Install the wiring harness clamp bracket with the 2 bolts.

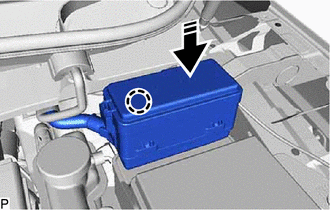

- CONNECT NO. 2 ENGINE ROOM RELAY BLOCK
- INSTALL FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP LH
Refer to PROCEDURE - Step 7
- INSTALL COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 4 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - 08/2019]
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
- INSTALL REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 54 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 53 [12/2017 - ]
- INSTALL DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 56 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 55 [12/2017 - ]
