Crankshaft Position Sensor
›
Components [10/2015 - ]
Components [10/2015 - ]

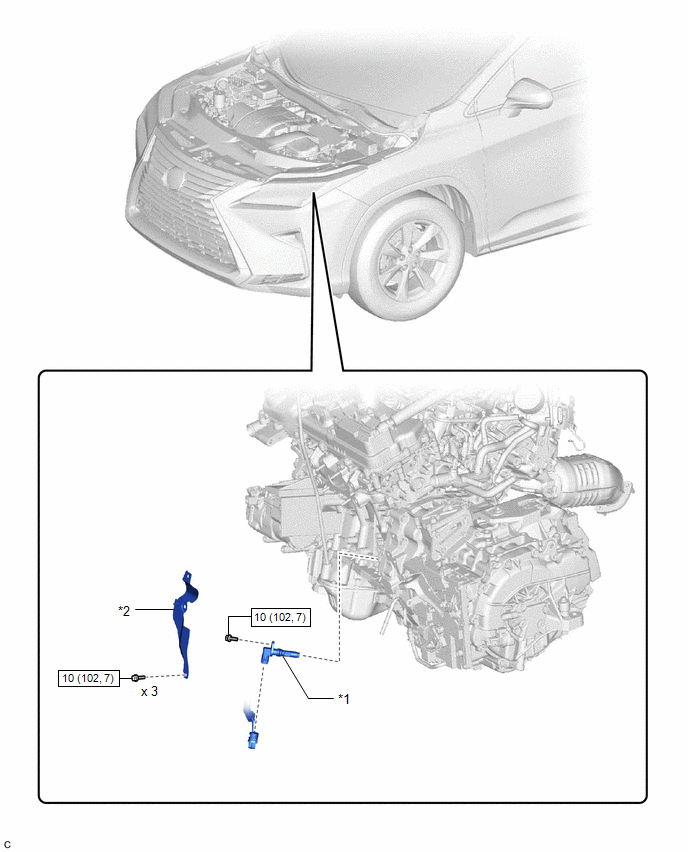

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
CRANKSHAFT POSITION SENSOR
*2
CRANKSHAFT POSITION SENSOR PROTECTOR
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
