Components [10/2015 - ]

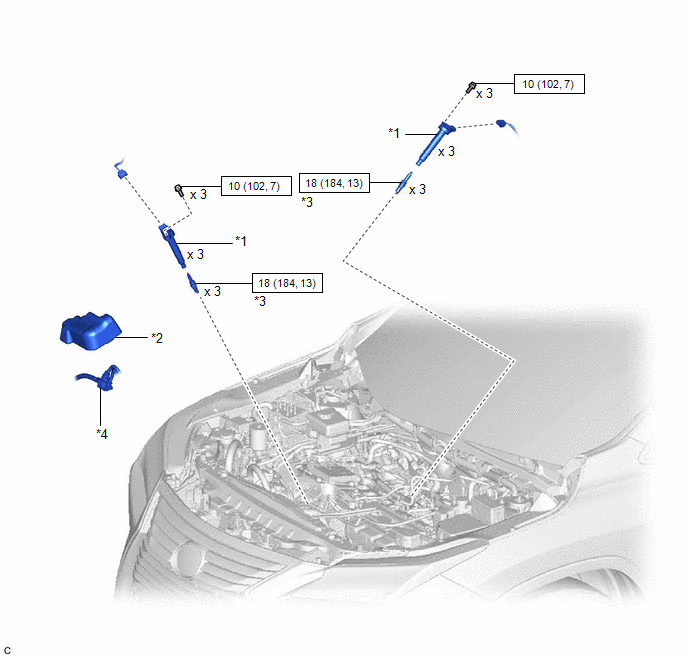

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications
GTY830112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION COIL ASSEMBLY *2 NO. 1 ENGINE COVER
*3 SPARK PLUG *4 WIRE HARNESS
N*m (kgf*cm, ft.*lbf): Specified torque - -
