Components [10/2018 - ]

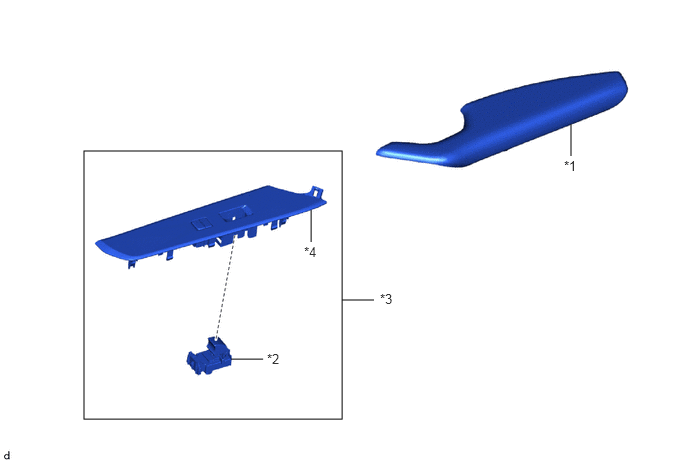

Fig 1: Front Passenger Side Power Window Switch Replacement Components
GTY800142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT ARMREST ASSEMBLY RH *2 POWER WINDOW REGULATOR SWITCH ASSEMBLY
*3 POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL *4 FRONT DOOR UPPER ARMREST BASE PANEL RH
