Power Window Master Switch
›
Components [10/2018 - ]
Components [10/2018 - ]

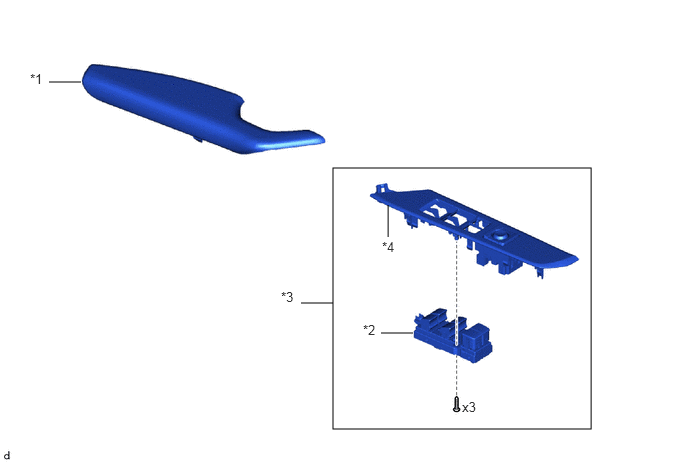

Fig 1: Power Window Master Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT ARMREST ASSEMBLY LH
*2
MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
*3
MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL
*4
FRONT ARMREST BASE PANEL UPPER LH
