Installation [10/2018 - ]: Procedure

  1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

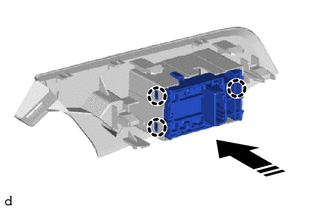

    1. Engage the claws to install the rear power window regulator switch assembly.
      GTY831804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE UPPER PANEL

    Refer to PROCEDURE - Step 42 [10/2018 - 07/2022] , or refer to PROCEDURE - Step 42 [07/2022 - ]

  3. INSTALL REAR ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 43 [10/2018 - 07/2022] , or refer to PROCEDURE - Step 43 [07/2022 - ]
