Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to REMOVAL [10/2018 - 07/2022]

  2. REMOVE VSC OFF SWITCH

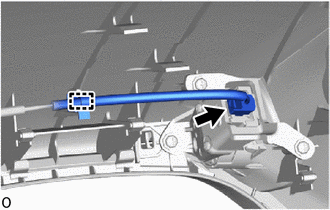

    1. Disconnect the connector.
      GTY832392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to separate the wire harness.

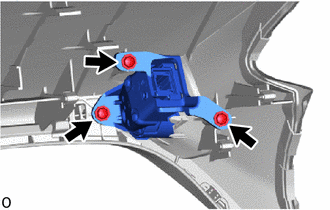

    3. Remove the 3 screws and VSC OFF switch.
      GTY798564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

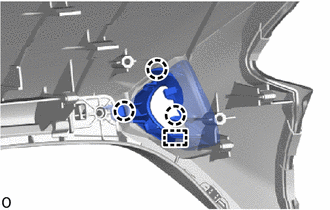

    4. Disengage the 3 claws and guide to remove the instrument panel hole cover.
      GTY798569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
