Components [10/2018 - 07/2022]

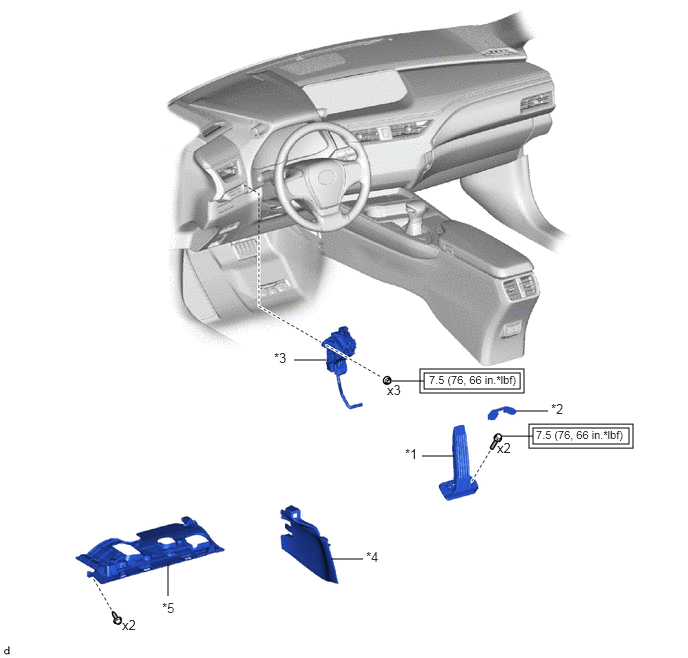

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ACCELERATOR PEDAL ASSEMBLY	*2	ACCELERATOR PEDAL PAD
*3	ACCELERATOR PEDAL SENSOR ASSEMBLY	*4	NO. 1 FRONT CONSOLE BOX INSERT
*5	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)	-	-
